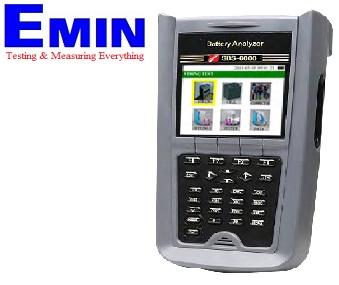

SBS-600 0电池电阻测试仪

Manufacturer: SBS
Model: SBS-6000
Made in: USA
Size and Weight: 4.25"W x 1.97"D x 7.5"H; 2.2 lbs.
Storage: 100,000 records
Ah Measurement Range: 5 - 6000Ah, 0 to 60 Vdc
Voltage Measurement Resolution: 0.001V
Accuracy: +/-0.1%
Resistance Measurement Range: 1 mΩ to 400Ω
Resolution: 0.001 mΩ
Accuracy: ±1.0%
Display: 3.5" LCD color, 320 x 240 backlit screen
User Programmable: Alarms, Setpoints
Communication Interface: RS232 serial or RJ45 Ethernet cable
Software: Battery Manager 6000
Software Format: Windows XP/7
Built-in Battery: Rechargeable Li-ion battery
Operation Time     More than 5 hours
Operation Temperature     -14° F to 122° F
Includes: Main unit, 4 point pin probes, Clamp probes, Battery Manager 6000 software, Li-Ion battery & charger, Heavy duty carrying case, RJ45 and RS232 cables, Instruction manual



  - SBS-6000 Data Sheet

  - SBS-6000 Users Manual


   - Tests Flooded Lead-Acid, VRLA & Ni-Cad batteries
   - Voltage testing range is 0-60V for batteries from 1.2 - 48 Vdc
   - Large 3.5" LCD color backlit display
   - Built-in rechargeable Li-ion battery for approximately 5 hours run time
   - Very large data storage capacity: more than 100,000 records
   - Meets IEEE and NERC maintenance recommendations for stationary battery systems
   - Automatically measures and stores data through contact probes on the battery posts
   - User-friendly and easy to navigate menu
   - Software package for storing and analyzing results and creating reports


   - Support communications through RS232 or RJ45 ports
   - Storage battery resistance testing: automatically switches within the test range 1 mΩ to 400 mΩ and resistance measurement resolution reaches 1 mΩ
   - Resistance test each connection in under 5 seconds
   - Internally stores up to 10,000 groups of battery parameters
   - Test results are compared to user-defined alarm setpoint values
   - Generates and displays the battery string’s single cell test report and comparison data
   - On-screen pass / warning / fail indication during testing


   - Telecommunications
   - Utility
   - UPS
   - Battery manufacturing
   - Industrial maintenance
   - Critical power
   - Data center
