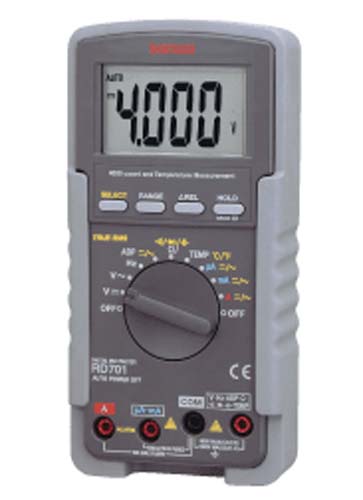

Sanwa RD 700 数字万用表(0.3%)

3-3 / 4 digits 4000 count
0.3% best accuracy
Capacitance measurement
; Not suitable for measuring condensers with large leak current
K type temperature
; Optional accessory K-AD is necessary.
; K type temp. sensor K-250PC is included.
Frequency measurement
; Input voltage : 20VACrms and under
; Input signal : sign wave or square wave with 40% -70% duty
; Input sensitivity : 10Hz^ 20kHz/ 0.9Vrms and above
: 20kHz^ 500kHz/ 2.6Vp or 1.9Vrms and above
: 500kHz^ 1MHz/ 4.2Vp or 3Vrms and above
ADP function ( for current sensor)
Max recording measurement
Data hold / Range hold
Relative value
Auto power off ( 30min.) ( cancelable)
Alarm for improper test lead insertion to current terminal
Protective holster with wall hanger and lead holder
Tilt stand

Basic Features :
Display : numeral display 4000 ( Hz : 9999, capacitance : 5000)
Sampling rate : 3 times / sec. ( Hz : 2 times / sec.)
AC frequency bandwidth : 50^ 500Hz

Details




Features:
■3-3 / 4 digits 4000 count
■0.3% best accuracy
■AC True RMS ※RD701 only
■Capacitance measurement
※Not suitable for measurement of condensers with large leak   current.
■K type temperature
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard ac  cessory
■Frequency measurement
※Input voltage : 20VACrms and under
※Input signal : sign wave or square wave with 40%-70% duty
※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
 : 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
 : 500kHz〜1MHz/4.2Vp or 3Vrms and  above
■ADP function (for current sensor)
■Max recording measurement
■Data hold / Range hold  ■Relative value
■Auto power off (30min.) (cancelable)
■Alarm for improper test lead insertion to current  terminal
■Protective holster with wall hanger and lead  holder
■Tilt stand
Display : numeral display 4000 (Hz : 9999, capacitance :5000)
Sampling rate : 3 times / sec. (Hz : 2 times / sec.)
AC frequency bandwidth : 50〜500Hz

Option:
Clamp probe : CL-20D, CL-22AD, CL33DC
HV probe : HV-60
Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-CD
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
