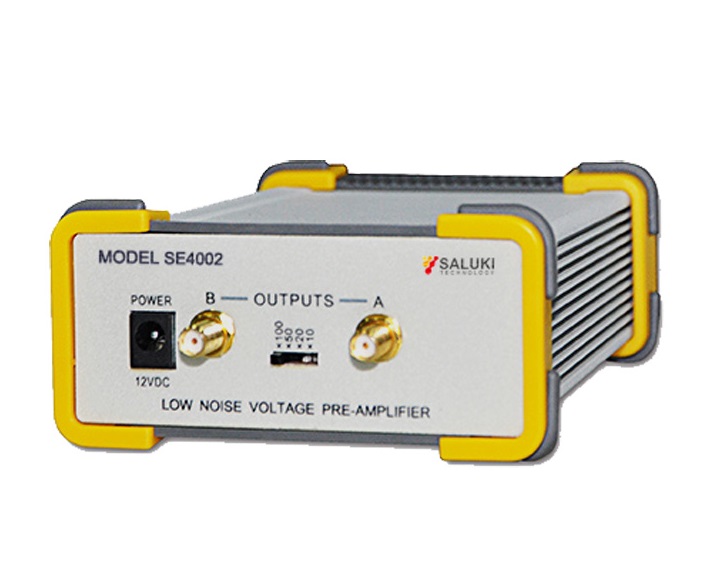

SALUKI SE4002 输入前置放大器 (10MΩ//8pF)

Input Impedance: 10MΩ//8pF

Inputs: Single-ended or differential

Maximum Input: 70mVrms (overload)

Noise (typ.)

     5.6 nV/√Hz at 99.7 kHz

     5.7 nV/√Hz at 9.7 kHz

     6.2 nV/√Hz at 997 Hz

     22.1 nV/√Hz at 9.7 Hz

Coupling: SAC (0.16Hz)

CMRT: > 100dB

Input Bandwidth: 1Hz – 300kHz

Gain: 10, 20, 50, 100

Gain Accuracy: 2% (max.)

Outputs:

     A (signal, single-ended)

     B (shielded ground)

Maximum Output: 7 Vrms

Details

Datasheet
