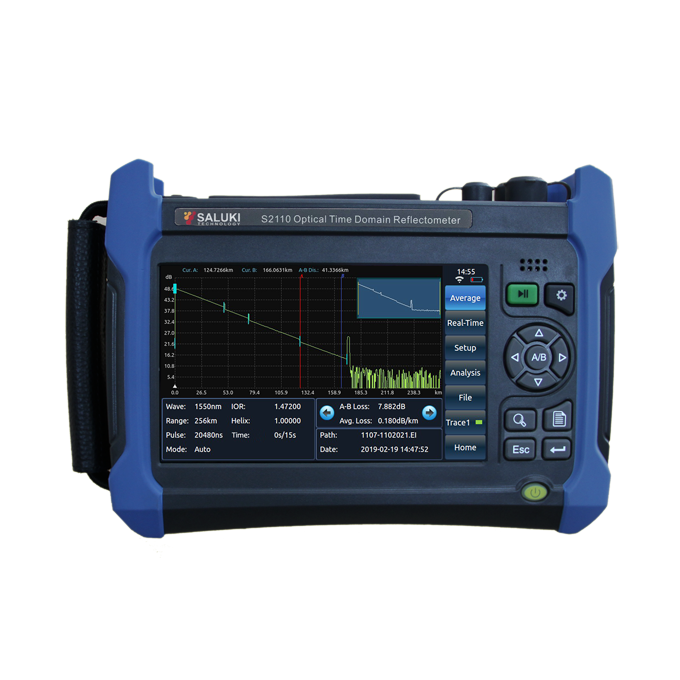

SALUKI S2110P-3103 光时域反射计 (42/40/40 dB, SM)

1. OTDR

Wavelength: 1310/1550/1625nm (built-in filter)

Dynamic Range: 42/40/40 dB

Event Blind Zone: 0.8m

Attenuation Blind Zone: 4.5m

Test Range: 0.4km/0.8km/1.6km/3.2km/6.4km/16km/32km/64km/128km/256km/512km

Pulse Width: 3ns/5ns/10ns/30ns/80ns/160ns/320ns/640ns/1280ns/5120ns/10240ns/20480ns

Sampling Point: Max. 256k

Sampling Resolution: 0.05m/0.1m/0.2m/0.5m/1m/2m/4m/8m/16m/32m

Linearity: 0.03dB/dB

Loss Resolution: 0.001dB

IOR: 1.00000 – 1.99999, 0.00001 step

Distance Unit: km, m, thousand feet, feet

File Format: .SOR, .EI, .PDF and .JPG

Optical Interface: FC/UPC (Optional LC/UPC, SC/UPC and ST/UPC)2. OPM

2. OPM

Wavelength Range: 1200nm – 1650nm

Measurement Range: -60dBm to +0dBm

Uncertainty: ± 5% (-25dBm, CW)

Connector: FC/UPC (Optional LC/UPC, SC/UPC and ST/UPC)

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

3. LS

Wavelength: Consistent with OTDR output wavelength

Output Power: ≥ -5dBm

Output Mode: CW, 270Hz, 1kHz and 2kHz

Connector: FC/UPC (Optional LC/UPC, SC/UPC and ST/UPC)

4. VFL

Wavelength: 650nm ± 20nm

Mode: CW/1Hz/2Hz

Output Power: 2mW (typical)

Connector: FC/UPC (Optional LC/UPC, SC/UPC and ST/UPC)

Display: 7 inch color LCD capacitive touch screen, 800×480

Data Storage: Internal: 8GB

Data Interface: USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD

Battery: Internal Li battery 11.1V / 6800mAh, 8 hours working time

Power Supply: AC100V-240V, 50/60Hz and 1.5A DC: 17V±3V(2A)

Power Consumption: Max. 10W

Dimension: 252 (W) × 180 (H) × 55 (D) mm

Weight: About 1.8kg
