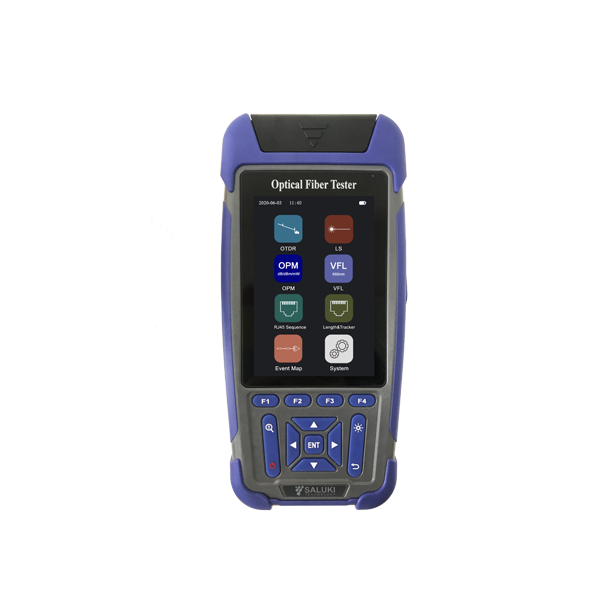

SALUKI S2103D 光时域反射计 (1310/1550 nm, 24/22 dB, SM)


Wavelength: 1310/1550 ± 20nm

Dynamic Range: 24/22 dB

Event Blind Zone: 3m

Attenuation Blind Zone: 8m

Test Range: 500m-60km

Pulse Width: 3ns-10µs

Sampling Point: 16k – 128k

Sampling Resolution: 0.05m – 8m

Loss Accuracy: ±0.02dB/dB

Reflection Accuracy:± 3dB

File Format: SOR (standard format)

Optical Interface:FC/UPC (Interchangeable SC, ST)

Laser Safety Level: Class II

2. OPM

Wavelength Range: 800nm – 1700nm

Measurement Range: -50dBm to +26dBm

Connector: Universal joint FC/SC/ST

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

3. LS

Wavelength: Consistent with OTDR output wavelength

Output Power: ≥ -5dBm

Stability: CW, ±0.5dB/15min

Laser Source: FP-LD

Connector: FC/UPC (Interchangeable SC, ST)

Output Mode: CW/270Hz/330Hz/1kHz/2kHz

4. VFL

Wavelength: 650nm ± 20nm

Output Power: ≥ 10mW (standard)

Mode: CW/1Hz/2Hz

Connector: FC/SC/ST

5. RJ45 Cable Length

Test Distance: 300m

Display: 3.5 inch color LCD screen

Data Storage: Internal: ≥600, External: TF card

Data Interface: Micro USB

Battery: 3.7V/4000mAh Lithium battery, continuous working time > 12 hours

Dimension: 82 (W) × 173 (H) × 37 (D) mm

Weight: ≤ 0.35kg (including battery)
