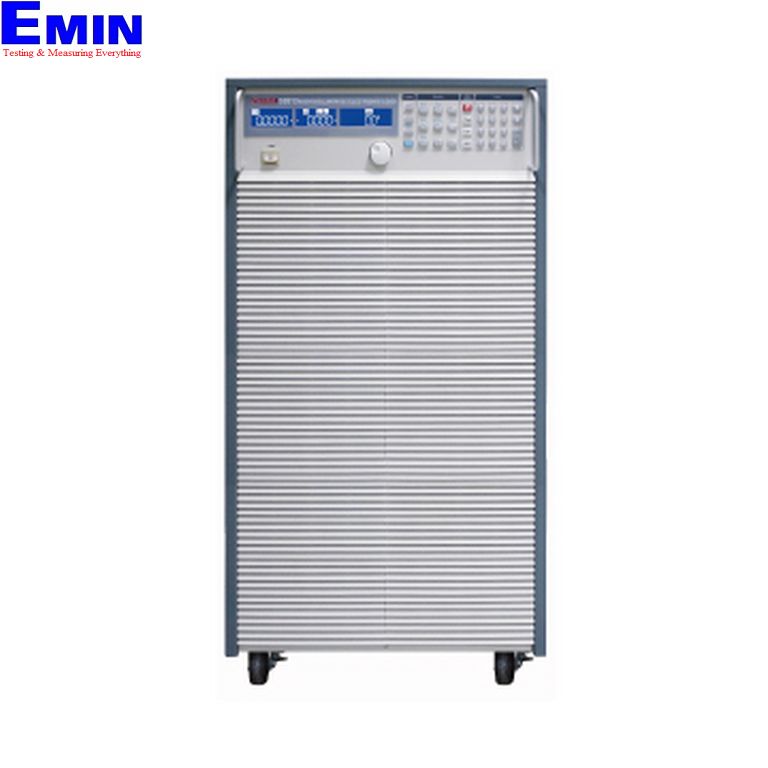

Prodigit 33813 直流电子负载(20KW,640A,600V)

Manufacturer: Prodigit Electronics - Taiwan
Model: 33813
Warranty: 12 months

Power input: 20KW
Current input: 640A
Voltage input: 600V

Display: V, A, W




● Compact size (1608H*448W*764Dmm) posses 40KW load capability

● 5 digit V/A/W Meter

● High-speed measurement and communication transmission

● Large LCD Displaysetting values can be adjusted by rotary knob or push button

● Voltage Current and Watt value can be displayed simultaneously

● Capable for Power Factor Correction (PFC) Test

● OCP OPP test function automatically

● Power ON status can be set

● CC, CR, CV, CP, Dynamic and Short operation mode

● SHORT time setting

● Protections against V,I,W, and ℃

● Voltage meter display the polarity positive (”+”or negativeis selectable

● Optional Interface: GPIBRS232USBLAN


‧3380 Series has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232USB and LAN interface.

‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

‧Single key for OCP OPP test function will be more efficiency and accuracy on OCPOPP testing.

‧Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

‧150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.

‧Maximum Voltage up to 600V provide an idea testing solution for Power Factor Correction test.
