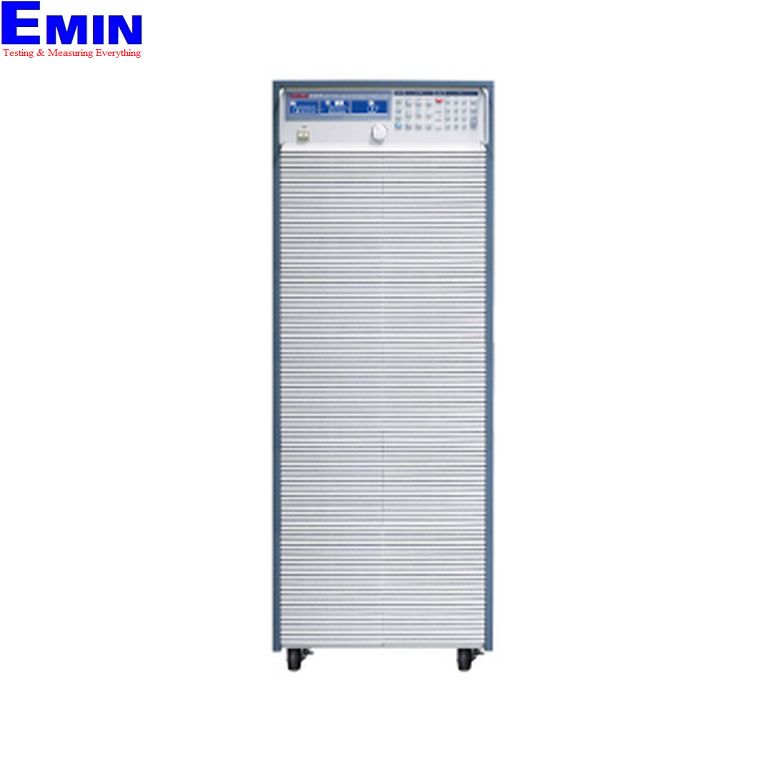

Prodigit 33805 直流电子负载(30KW,240A,600V)

Manufacturer: Prodigit Electronics - Taiwan
Model: 33805
Warranty: 12 months

Power input: 30KW
Current input: 240A
Voltage input: 600V

Display: V, A, W




● Compact size (1608H*448W*764Dmm) posses 40KW load capability

● 5 digit V/A/W Meter

● High-speed measurement and communication transmission

● Large LCD Displaysetting values can be adjusted by rotary knob or push button

● Voltage Current and Watt value can be displayed simultaneously

● Capable for Power Factor Correction (PFC) Test

● OCP OPP test function automatically

● Power ON status can be set

● CC, CR, CV, CP, Dynamic and Short operation mode

● SHORT time setting

● Protections against V,I,W, and ℃

● Voltage meter display the polarity positive (”+”or negativeis selectable

● Optional Interface: GPIBRS232USBLAN


‧3380 Series has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232USB and LAN interface.

‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
