Current Max: 12A
Operating voltage: 250V
Display: V, A, W
Protection: over voltage, over current, over power, over temperature
<link rel="File-List" href="file:///C:DOCUME~1AdminLOCALS~1Tempmsohtml1

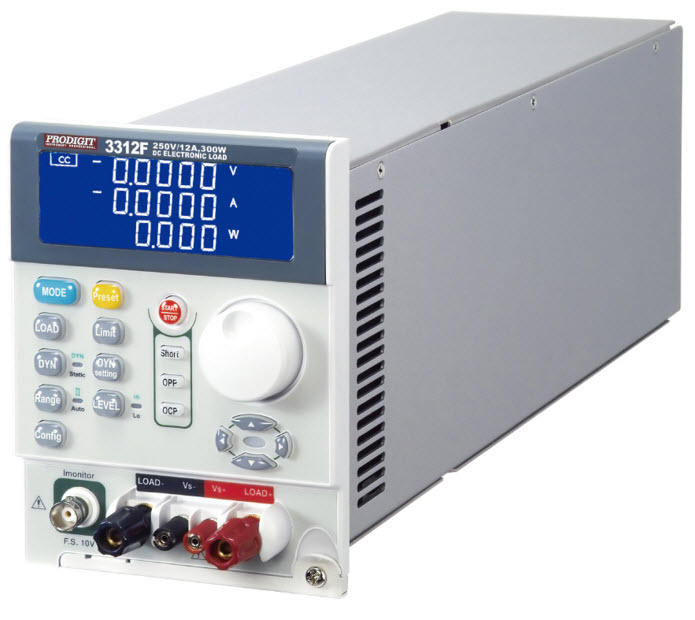

Main Frame: 3302F-01
⊙5 digital V/A/W Meter
⊙Power ON status value can be set
⊙High-speed measurement and communication transmission
⊙Flexible CC. CR, CV, CP, Dynamic and Short operation modes
⊙V.A.W. values can be displayed simultaneously
⊙SHORT time setting and SHORT_VH, SHORT_VL setting function
⊙LCD big display
⊙Protections against V, I, W, and ℃
⊙Setting values can be adjusted by rotary knob or push button
⊙Voltage meter display the polarity positive (”+”）or negative (”－”）is selectable
⊙OCP 、 OPP test function
⊙Can be configured in 3302F 〔single channel mainframe〕、3305F〔two channels mainframe〕or 3300F［four channels mainframe〕，and the mainframe with 150 sets Store/Recall memory
⊙SYNC. Load ON function
⊙Optional Interface : GPIB、RS232、USB、LAN
‧Each 3310F Series module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently.，also can be controlled intranet via RS232、Ethernet、USB and GPIB interface.
‧SHORT time setting and SHORT_VH, SHORT_VL setting function，also can measure Short Voltage and Current.
‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input so that load can have a simulated Arbitrary Waveform.
‧The additional OCP 、OPP test function operated by both mainframe and module that will be more efficiency and accuracy on OCP, OPP testing.
‧Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance features for each different application.
‧150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.
