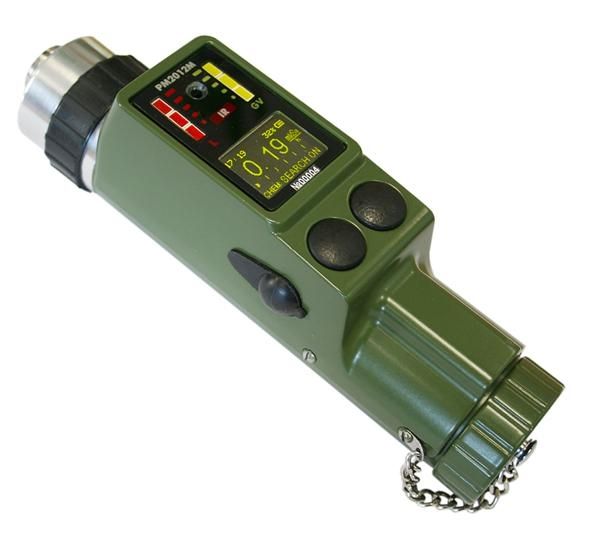

Polimaster PM2012M 组合药剂寻和核辐射测量设备

- Detectors
+ Gamma-radiation detector: Geiger-Muller counter
+ Chemical warfare agent:  Ion Mobility Spectrometry (IMS)
- Dose rate measuring range: 1 µSv/h - 10 Sv/h
- Dose rate accuracy (H - dose rate, µSv/h):  ± (15 + 20/H) %
- Dose measurement range: 1 µSv - 10 Sv
- Dose accuracy:  ± 15 %
- Dose rate threshold range: 0.01 up to 999 mSv/h
- Gamma radiation energy range:  0.06 – 3.0 MeV
- Energy response relative to 0.662 MeV (Cs-137): ± 30 %
- Detection time of exceed threshold concentration
(at normal climatic conditions: temperature +20°
C ±5°C, atmospheric pressure 101.3 (+5.4; -17.3) kPa,
relative humidity 60 (+20; -30) %)
+ threshold for organophosphorous compounds detection 5*10-5mg/l,
no more than: 10 s
+ threshold for arsenic-containing compounds detection 5*10-4mg/l,
no more than: -
+ threshold 3*10-4mg/l for arsenic-containing compounds,
no more than: 15 s
- Detection time of step increase or decrease of
gamma-radiation dose equivalent rate from 10 to
100 mSv/h, no more than: 10 s
- Power supply: one D type galvanic battery
- Batteries lifetime, not less than: 150 h
- Operating conditions
+ temperature range: -10 to +60°C (-14 to +140 °F)
+ relative humidity: up to 98% at 35°C (95°F)
+ pressure: from 84 to 106.7 kPa
- Case protection (non-operating condition): IP41
- Weight, not more than: 770 g
- Dimensions: 66 x 47 x 195 mm

 The portable instrument, designed for continuous monitoring of radiation environment and ambient gamma radiation dose rate measuring as well as detection of presence of toxic vapors in the air.

The compact instrument with integrated functions of simultaneous monitoring of both radiological and chemical environment.
Two-in-one instrument: gamma radiation dosimeter and chemical detector in single housing;
Continuous measurement of ambient Dose Equivalent Rate and Dose Equivalent of gamma radiation up to 10 Sv/h (1000 R/h), and 10 Sv (1000 R) respectively;
Simultaneous, independent detection of organophosphorous compounds (Sarin, Soman, V-gases) and arsenic-containing substances (Lewisites);
Audible and visual alarms. Preset thresholds for gamma radiation dose and dose rate and concentration of steams of toxic substances;
High contrast OLED indicator for clear information representation even with bright solar illumination interference;
Non volatile memory for data storage;
IR port for data download of instrument’s operation history to a PC;
The instrument can be connected to the on-board power supply or AC main line;
Waterproof and shockproof case;
Clock-calendar function.
