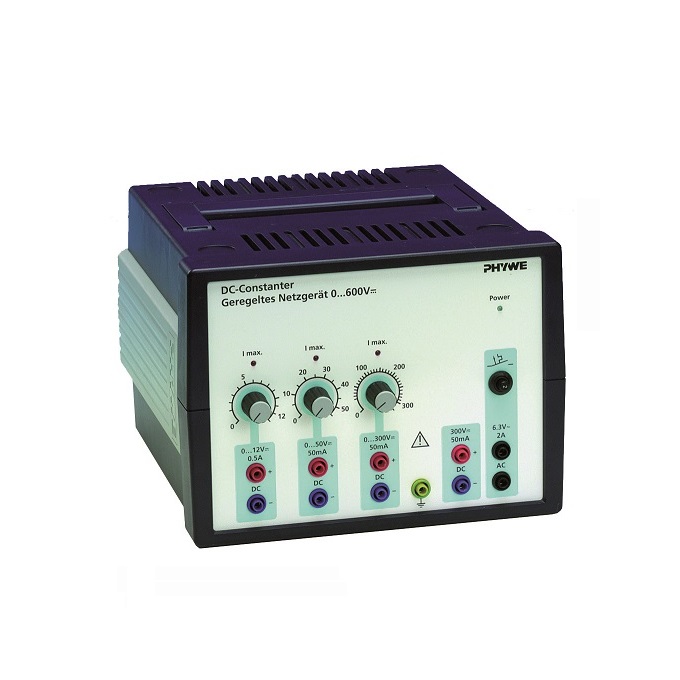

PHYWE 13672-93 电源 (0~12 VDC, 6.3 VAC)

Function and Applications

Power supply with 5 output voltages especially designed for experiments with tubes, fine beams and conducting the Frank-Hertz experiment.

Benefits

Electronically stabilised DC voltages, short-circuit protected, galvanically isolated from one another so that they can be connected in series, featuring an LED current-limiting indicator and protection against polarity reversal

AC voltage with automatic circuit breaker

All outputs are floating and isolated from the mains and use 4-mm safety sockets

Equipment and Technical Data

Output 1: 0...12 V-/0.5 A

Stability: < 0.1 %

Residual ripple: < 5 mV

Output 2: 0...50 V-/50 mA

Stability: < 0.01 %

Residual ripple: < 5 mV

Outputs 3/4: 300 V-/0...300 V-/50 mA

Stability: < 0.01 %

Residual ripple: < 20 mV

Output 5: 6.3 V~/2 A

Power consumption: 100 VA approx.

Mains voltage: 230 V

Impact-resistant, stackable plastic case with carrying handle and stand

Dimensions (mm): 230 x 236 x 168
