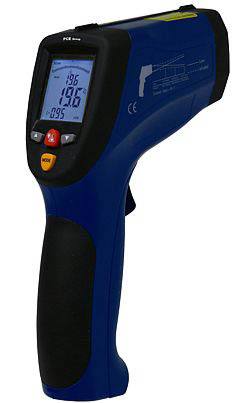

PCE 892 红外测温仪 (50-2200°C)

Temperature range
- Type K
- Infrared

- 50 ... +1370 °C
- 50 ... +2200 °C

Resolution
- Type K
- Infrared

<1000 c="0,1" c="">1000 ºC = 1,0 ºC
<1000 c="0,1" c="">1000 ºC = 1,0 ºC

Accuracy
- Type K


- Infrared
(with an operating temperature of 23 ... 25 ºC)

-50 ... 1000 ºC / ±1,5 % measurement value ±3 °C
1000 ... 1370 ºC / ±1,5 % measurement value ±2 °C

-50 ... 20 ºC / ±2,5 ºC
20 ... 500 ºC / ±1 % measurement value ±1 °C
500 ... 1000 ºC / ±1,5 % of the measurement value
1000 ... 2200 ºC / ±2 % of the measurement value

Repeatability
- Type K

- Infrared

-50 ... 1370 ºC / ±1,5 % measurement value

-50 ... 20 ºC / ±1,5 ºC
20 ... 1000 ºC / ±0,5% measurement value or ±0,5ºC
1000 ... 2200 ºC / ±1% of the measurement value

Response time

150 ms (infrared)

Spectral range

8 a 14 µm

Optical resolution

50 : 1

Laser

<1 wavelength="" 630="" 670="" nm="" class="" 2="" p="">

Alarm function

High and low alarm

Display

LCD backlight display

Operating conditions

0 ... +50 ºC / 10 ... 90% H.r.

Power

1 x 9 V battery

Dimensions

220 x 120 x 56 mm

Weight

290 g
