PCE DT 65 转速表

Measurement range, laser-optics: 2 … 99,999 rpm

Measurement range, mechanical: 2 to 20,000RPM

Resolution

0.1 rpm in the range of 2.0 … 9999.9 rpm

1 rpm in the range of 10,000 … 99,999 rpm

Accuracy: ± 0.05% of rpm value ± 1 digit

Measuring distance: 50 … 500 mm / 1.96 ... 19.68 in

Memory: 10 measurement values

Power supply: 1 x 9V block / 6V external power supply

Operating temperature range: 0 … 50°C / 32 ... 122°F

Casing: ABS plastic

LCD display: 5 digits, 22 mm / 0.9 in height

Dimensions: 160 x 60 x 42 mm / 6.24 x 2.36 x 1.65 in

Weight: 200 g / < 1 lb

Delivery Contents

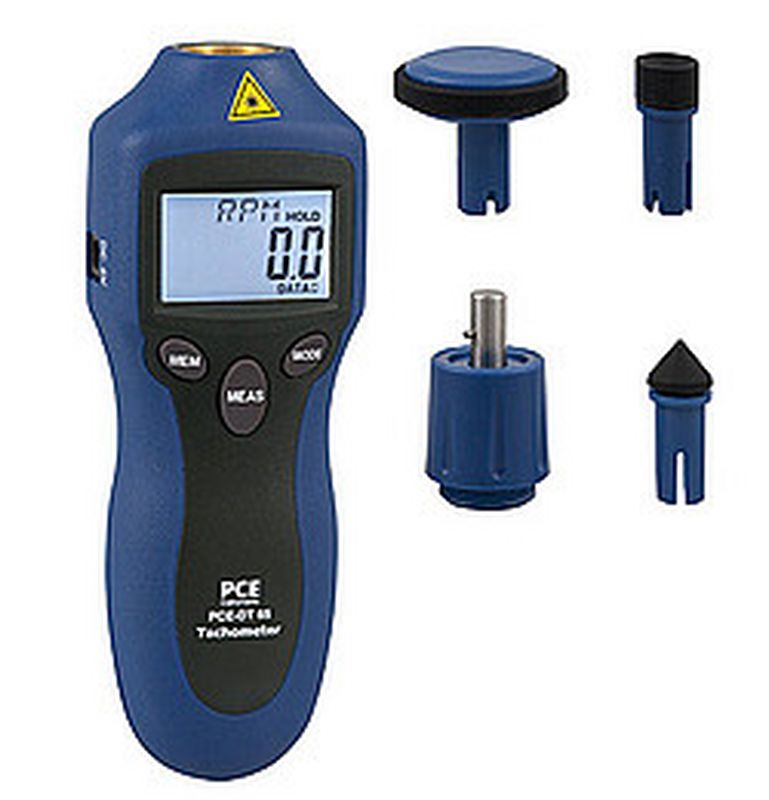

1 x PCE-DT 65 tachometer

1 x Mechanical attachment

1 x Adapter wheel

1 x Measuring probe (outer cone)

1 x Measuring hollow point (inside cone)

1 x Belt bag

1 x Battery

2 x Stripes reflective tape (each 20 mm or 0.78 in)

1 x User manual
