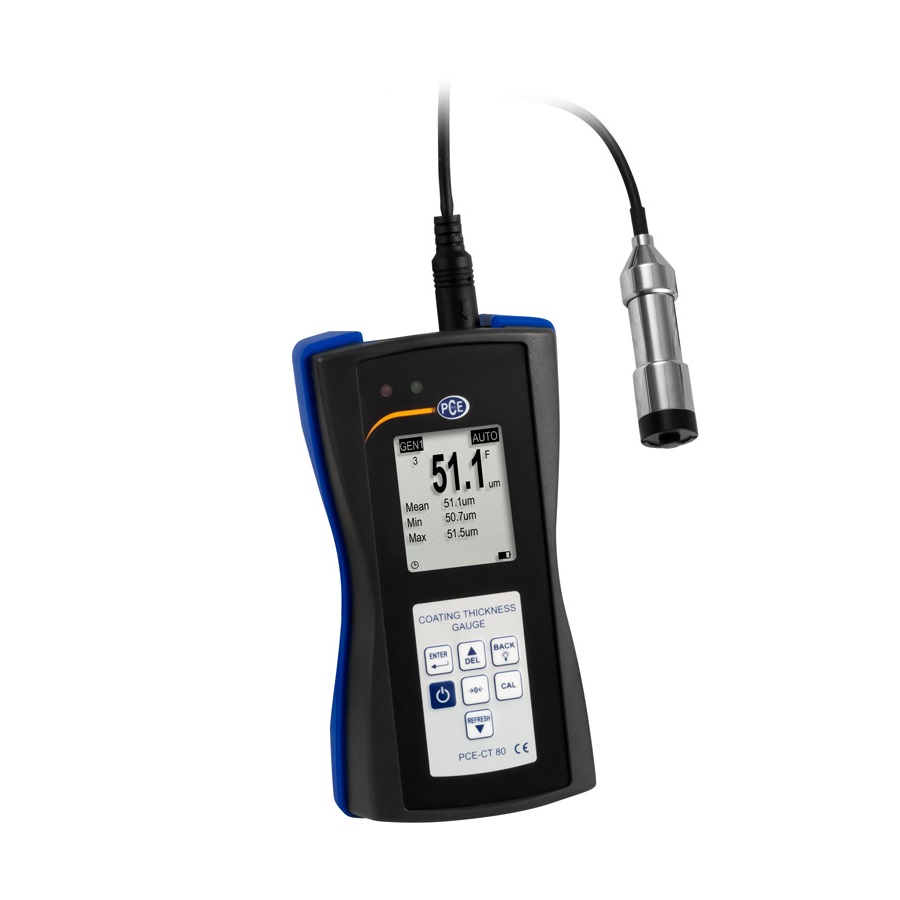

PCE CT 80-ICA 涂层测厚仪
制造商: PCE Model: CT 80-ICA 来源: Germany - 报价要求
- 联系
Measuring range:
Fe: 0 to 5000 μm / 0 ... 196.9 mils (depending on sensor)
NFe: 0 to 3000 μm / 0 ... 118.1 mils (depending on sensor)
Accuracy: ± (2% of reading + 1 μm / 0.039 mils)
Resolution:
0.1 μm (0.0039 mils) (< 100 μm / 3.94 mils)
1 μm / 0.039 mils (> 100 μm / 3.94 mils)
Measurable materials:
Non-magnetic layers on steel, iron, ...
Non-electrically conductive layers on aluminum, copper, ...
Min. radius of curvature convex: 5 mm / 0.2 in
Min. radius of curvature concave: 25 mm / 1 in
Min. measuring surface: Ø17 mm / 0.7 in
Min. substrate thickness:
0.2 mm / 0.08 in (on magnetic materials)
0.05 mm / 0.002 in (on non-magnetic materials)
Probe mode:
Autom. Mode with material detection (Fe + NFe)
Magnetic mode (Fe)
Eddy current mode (NFe)
Measurement mode:
Single measurement
Continuous measurement
Calibration:
Multipoint calibration (1 ... 4 points for each group)
Zeroing
Units: μm, mm, mils
Data transfer: USB 2.0
Storage:
A volatile measuring group (DIR mode)
Four measuring groups with autom. Storage and max. 2000 readings (GEN mode)
Statistical functions: Number of Measured values, mean, minimum, maximum, standard deviation
Alarm: Display when the adjustable upper and lower alarm limits are exceeded
Operating time: Autom. Shutdown mode (3 min.)
Power supply: 3 x 1.5V AAA batteries
Display: 128 x 128 px LCD display
Indicators:
Battery status
Fault detection
Operating conditions:
0 ... 50°C / 32 ... 122°F
20 ... 90% RH not condensing
Storage conditions:
-10 ... 60°C / 14 ... 140°F
20 ... 90% RH not condensing
Dimensions: (L x W x H) 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5 in
Weight: With sensor and batteries: approx. 271 g / < 1 lb
Delivery Scope
1 x PCE-CT 80 Coating thickness gauge
1 x PCE-CT 80-FN1.5 sensor
3 x AAA batteries
1 x User manual
1 x Transport case
1 x Set of standard films
1 x Calibration plates (Fe and NFe)
1 x ISO calibration certificate
