Specifications
Measuring range: 22 ... 136 dbA
Accuracy: Class 1
Frequency range: 3 Hz ... 20 kHz
Standards
GB/T3785.1-2010
GB/T3785.2-2010
IEC60651:1979
IEC60804:2000
IEC61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997
Frequency analysis:
Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz
Microphone
1/2" measurement microphone class 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard
Data-logging interval: 1 s ... 24 h (adjustable)
Measuring functions: LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN.
X = Frequency weighting: A, B, C, Z;
Y = Time weighting: F, S, I;
N = Statistics in %: 1 ... 99 %
24 hour measurement: Automatic measurement with data storage
Frequency weightings: A, B, C, Z
Time weightings: Fast (F), Slow (S), Pulse(I), Peak
Inherent noise:
Microphone: 19 db(A), 25 db(C), 31 db(Z)
Electronics: 13 db(A), 17 db(C), 24 db(Z)
AD converter: 24 bit
Sample rate:
Standard: 48 kHz
LN mode: 20 ms
Measuring display: Numerical, Bar graph, Graphical
Display: 160 x 160 pixel LCD with backlight
Memory: 4 GB Micro SD card
Interface: USB (Memory readable via software or directly as mass storage), RS232
Voltage output:
AC 5V RMS
DC 10 mV/db
Alarm: Adjustable
Power supply:
4 x 1.5 V AA batteries
12 V / 1 A power plug
5 V / 1 A USB
Operating time battery mode: min. 10 h
Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)
Weight: approx. 620 g / 1.4 lbs incl. batteries
Transport case : PELI 1510 with rollers with grid foam
Protection: IP65
Outdoor Noise Level Meter Kit
Connections on the suitcase
Microphone: TNC
12 V charging voltage: XLR
110 V / 230 V charging voltage: PowerCon TRU
Charger: Victron Blue Smart 12 V / 4 A IP65
Internal batteries: 2 x 12 V / 12 Ah lead gel
Battery running time: min. 10 days
Power supply with charger EU Version: 180 ... 265 V AC
with charger US Version: 100 ... 130 V AC
battery operation: 2 x 12 V / 12 Ah
Cable length: Microphone cable: 2 m / 6 ft 6" with TNC connector
Power supply: 2 m / 6 ft 6" with PowerCon TRU
Dimensions: 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9"
Weight :
ca. 14 kg / 30 lb 13 oz with batteries
ca. 8 kg / 17 lb 10 oz without batteries

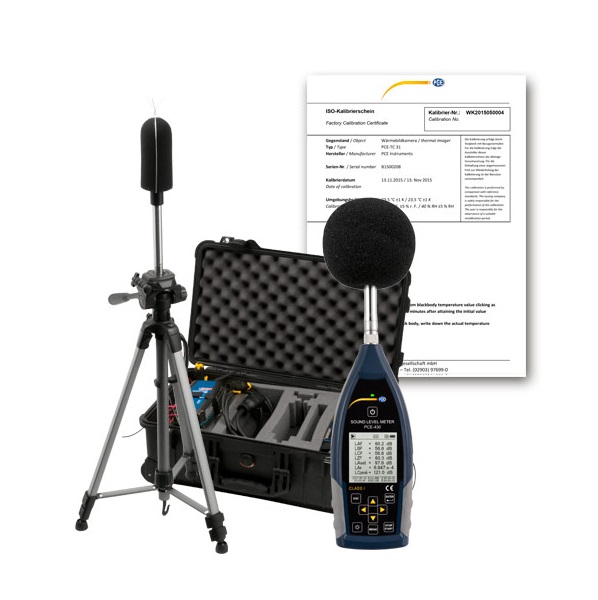

Delivery Scope:
1 x Outdoor Sound Level Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 1
1 x Wind noise suppression (foam ball)
1 x USB interface cable
1 x Software is a free download
1 x Power adapter
1 x Suitcase
1 x User manual
1 x ISO calibration certificate
1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply (optional Schuko or US connection)
Note: The outdoor sound level meter PCE-430-EKIT comes with octave band filter. Optionally upgrade with a 1/3 octave band filter (see option)
