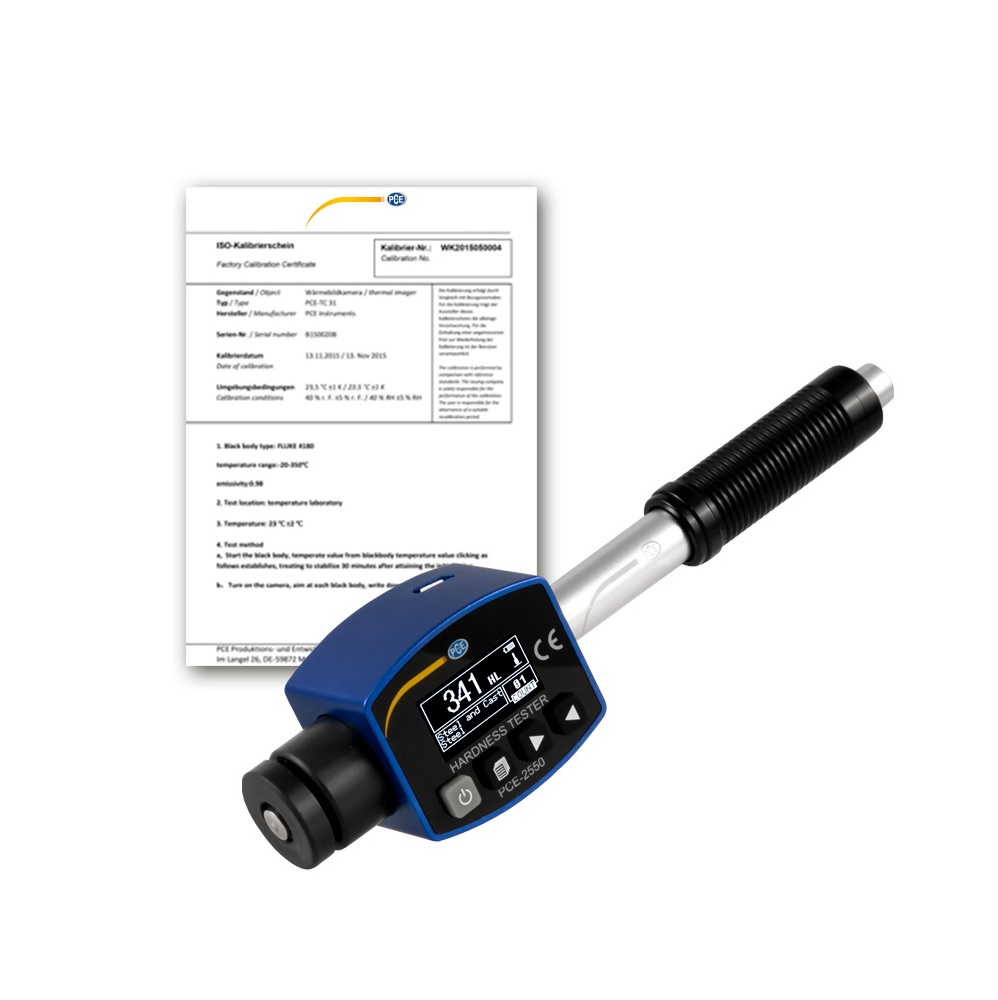

PCE 2550-ICA 硬度计 (170-960 HLD; ISO Cal. Cert.)

Measuring ranges: 170 ... 960 HLD

Measuring direction: 360°

Impact device: Type D

Measurement units: HL, HB, HRB, HRC, HRA, HV, HS

Selectable materials: 10

Calibration: On enclosed hardness test block

Minimum weight of the workpiece: 2 kg (on stable support / 50 g with coupling gel)

Minimum thickness of the workpiece: 5 mm with coupling paste

Display: OLED display

Internal measured value memory: 350 data groups

Alarm: Maximum or minimum value

Auto. Power Off: Yes

Power supply: 2 x CR2016 button cells

Interface: USB

Dimensions: 145.5 x 32 x 26 mm

Weight: 160 g / < 1 lb

Material: Steel and cast steel

Scale: Rockwell, Brinell, Vickers, Shore

Measuring range: HRC: 17.9 ... 68.5

                             HRB: 59.6 ... 99.6

                             HRA: 59.1 ... 85.8

                             HB: 127 ... 651

                             HV: 83 ... 976

                             HS: 32.2 ... 99.5

Material: Tool steel

Scale: Rockwell, Vickers

Measuring range: HRC: 20.4 ... 67.1

                             HV: 80 ... 898

Material: Stainless steel

Scale: Rockwell, Brinell, Vickers

Measuring range: HRB: 46.5 ... 101.7

                             HB: 85 ... 655

                             HV: 85 ... 802

Material: Cast iron

Scale: Rockwell, Brinell, Vickers

Measuring range: HB: 93 ... 334

Material: Ductile iron

Scale: Rockwell, Brinell, Vickers

Measuring range: HB: 131 ... 387

Material: Cast aluminum alloy

Scale: Rockwell, Brinell

Measuring range: HRB: 23.8 ... 84.6

                             HB: 19 ... 164

Material: Brass

Scale: Rockwell, Brinell

Measuring range: HRB: 13.5 ... 95.3

                             HB: 40 ... 173

Material: Bronze

Scale: Brinell

Measuring range: HB: 60 ... 290

Material: Machined copper alloy

Scale: Brinell

Measuring range: HB: 45 ... 315

Material: Machined steel alloy

Scale: Brinell

Measuring range: HB: 143 ... 650

Delivery Scope:

1 x Durometer PCE-2550-ICA

1 x USB connection cable

1 x Software

1 x Hardness test block

1 x Cleaning brush

1 x Support ring with Ø14 mm

1 x Transport case

1 x User manual

1 x ISO Calibration Certificate
