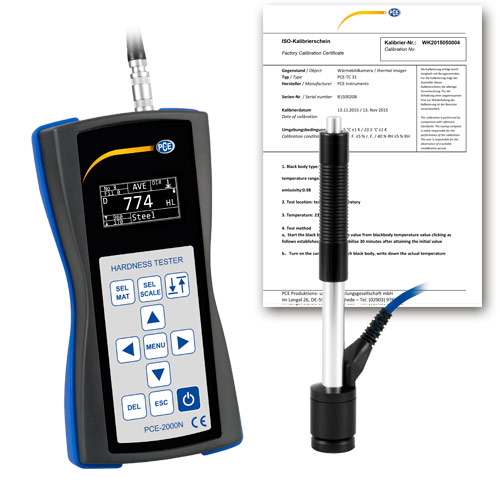

PCE 2000N-ICA 硬度计,包括ISO校准证书

Specifications

Measuring ranges:

170 ... 960 HLD

17.9 ... 69.5 HRC

19 ... 683 HB

80 ... 1042 HV

30.6 ... 102.6 HS

59.1 ... 88 HRA

13.5. .. 101.7 HRB

 Impact device included: D

(optional impact devices): (DC, D + 15, C, G, DL)

 Cable length impact device: About 1.5 m / 4.9 ft

Accuracy: ± 0.5% (@ 800 HLD)

Repeatability: 0.8% (@ 800 HLD)

Hardness scales:

HL (Leeb)

HV (Vickers)

HB (Brinell)

HS (Shore)

HRA (Rockwell A)

HRB (Rockwell B)

HRC (Rockwell C)

Measurable materials:

Steel

Cast steel

Alloy steel

Stainless steel

Gray glacé

Ductile iron

Cast aluminum alloy

Cu-zinc (brass)

Copper-tin alloy,

Copper

Display resolution: 128 x 64 pixel OLED

Data storage: 600 averages in 6 data groups

Data output: USB stick

Power supply: 3 x AA 1,5V-batteries

Auto Power-Off: if not in use, the device shuts off automatically after 12 minutes

Operating conditions: 10 ... 50°C / 50 ... 122°F, 20 ... 90% rh

Storage conditions: -30 ... 60°C / -22 ... 140°F

Dimensions: 160 x 80 x 40 mm / 6.3 x 3.1 x 1.6 in (H x W x D)

Weight:

Measuring device with batteries: approx. 300 g / < 1 lb

Impact device: approx. 75 g / < 1 lb

Delivery Scope:

1 x Durometer PCE-2000N-ICA

1 x Hardness comparison block

1 x Striker type D

1 x Transport case

1 x Cleaning brush

1 x User manual

3 x AA 1,5V-batteries

2 x Stabilization ring

1 x 2 GB USB stick

1 x ISO calibration certificate
