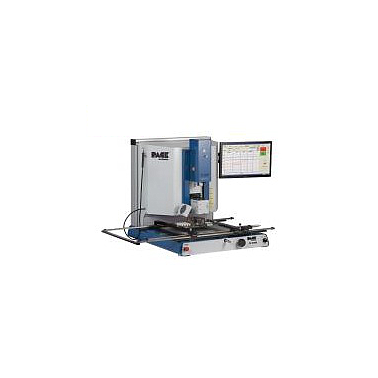

PACEWORLDWIDE TF 2700 BGA 钻床

Power Requirements:   230 VAC, 50 Hz(2800 watts maximum)
Temperature setting range  Top Heater: 100°to 400°C (212°to 750°F)
                                                 Bottom Heater: 100°to 221°C (212°to 430°F)
Heater (top side):   IR, 1200 Watts (400 Watts x 1 & 150 W x 6),
Heater (bottom):    405mm x 405mm (16° x 16°)
Max component size:   65mm x 65mm (2.5" x 2.5°)
Max PCB size:   610mm x 610mm (24° x 24°)
Air Flow maximum:   Self contained, PC controlled, adjust up to 20 SLPM
N2 Option:   Standard
Resolution on Optics Adjustment:   0.52mm (0.02°) per rotation
Positioning Accuracy (Z axis):  ° 25 °meters (0.001°)
Vacuum:   450mm Hg
Optics:   High resolution, Vision Overlay System
Video inputs:   2 Composite Video 1 °S° Video (for alignment optics)
Video Monitor Viewable area:   431mm (17°) Integrated Color flat Panel LCD Monitor
Board Supports:   Included
Optical Alignment Kit:  Included
