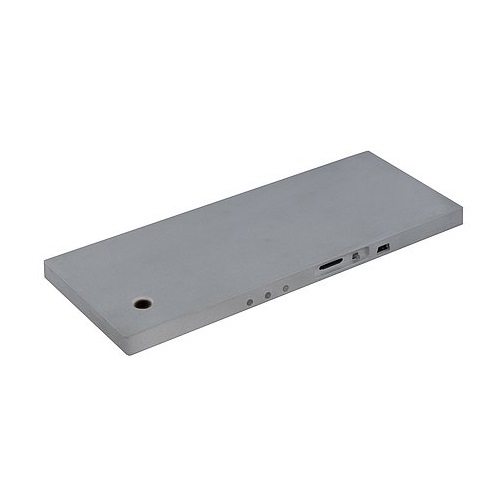

Opsytec Dr.Grobel tinyTracker172 TinyTracker (172nm, 0-200mW/cm²)

Measuring range: 0-200 mW/cm²

Resolution: 12 bit

Recording time: up to 3 hours

Sampling frequency: 1 - 100 Hz, adjustable

Photo detektor: GAP

Spectral sensitifity: 155 nm - 520 nm

Dimensions: 195 x 79 x 10 mm

Operating temperature: 60 °C

Supply voltage: 5 V DC

Power supply: Li-Ion-Akku, 1250mAh

Interface: MiniUSB 2.0

System requirements

Windows 10 / 7

300 MB HDD, 4 GB RAM


Delivery

tinyTracker172, manufacturers certificate of calibration, USB cable, wall plug adapter, carrying case


Detail

Datasheet


Features

• Calibrated photo detector for VUV radiation

• Ideal for the measurement of 172 nm radiation

• Low heighsssst of only 10 mm

• Fast data recording with up to 100 measurements per second
