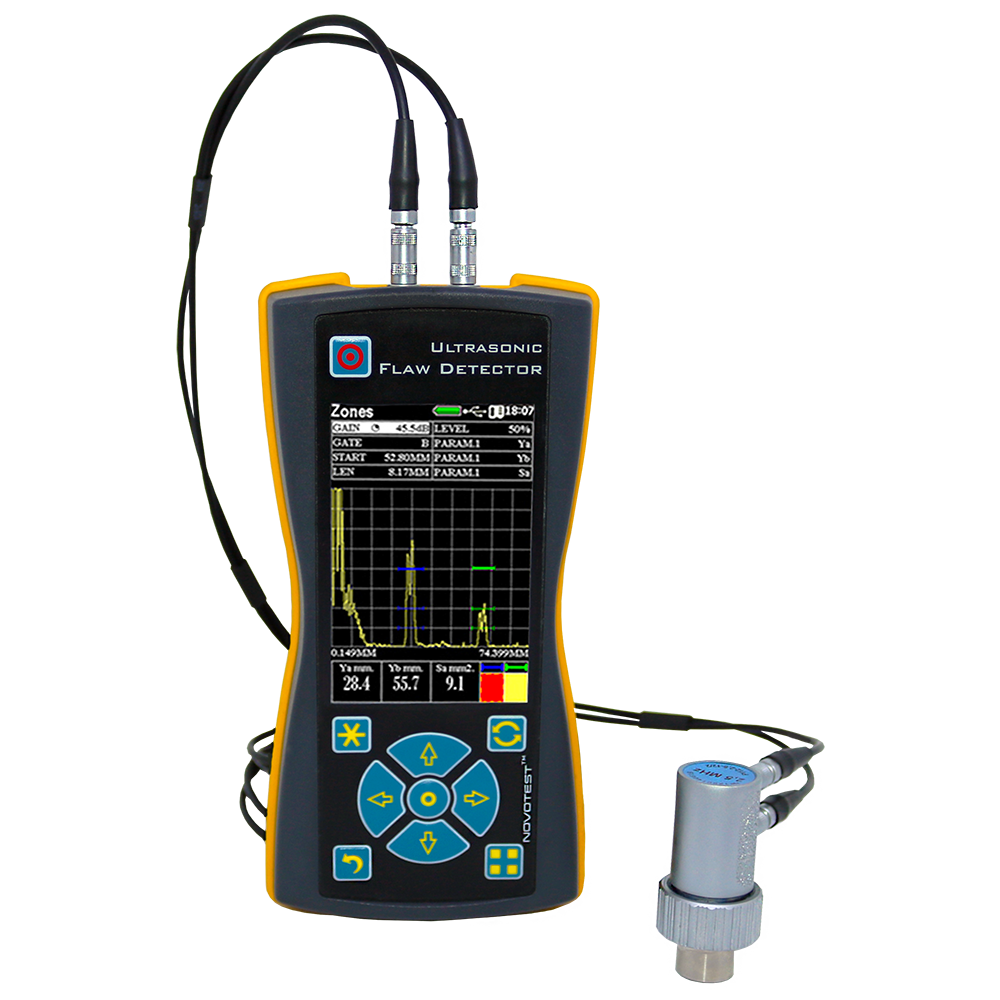

NOVOTEST UD2301 超声波探伤仪
制造商: NOVOTEST Model: UD2301 来源: Ukraine 保障: 11 Month - 联系
Operating frequency range: from 1 to 10,0 MHz
Range of measured time intervals (duration of scanning): from 6 to 1000 µs
Velocity range: 1000 – 9999 m / s
Error of measurement of time intervals: not exceed ± 0,025 µs
Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB: not exceed ± 0,5 dB
Testing gain range: 125 dB
Averaging over the quantity of starts: from 1 to 16
Range of variation of temporal sensitivity adjustment (TVG): 40 dB
Number of control points TVG: 16
Duration of the excitation pulse to the load: from 0,0 to 0,5 µs
Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than: 1 dB
Setting a delay in the prism of the probe: from 0 to 15 µs
Detection of signals: positive half-wave, radio mode
Measurement units: mm: μs (or inch by request)
Menu language: English: Russian: *additional languages available by request
Standards: EN 12668; ASTM E1324; EN 55011; EN61000-6-2:2001; EN 61010-1:2014 (EN 61010-1:2010); EN 60529:2014; EN ISO 16810:2016; SOU NNEC 027:2014; SOU NNEC 032:2014; SOU NNEC 038:2017
Dimensions (W*H*L): 80*162*38 mm
Weight, not more: 250 g (without batteries)
Description:
- An ultrasonic flaw detector is designed to search for voids and inhomogeneities inside the materials under testing with ultrasound. It is the most common device in the world for non-destructive testing of metal (and other materials with low attenuation of ultrasonic waves) products in production, as well as objects in operation.
- Ultrasonic Flaw Detector NOVOTEST UD2301 is a powerful, ergonomic, portable device that has all the functions of a general industrial ultrasonic flaw detectors and can be used in laboratories and workshops, and is perfect for field use
The main advantages of the Ultrasonic Flaw Detector NOVOTEST UD2301:
- Superbright display with which it is comfortable to work outdoors on a sunny day;
- Frequency range from 0 to 10 MHz, with smooth adjustment;
- Display of a scale of scanning in microseconds and millimeters;
- Construction and processing A-scan and B-scan;
- The presence in the device of the operating mode of the DAC curves (construction of 16 points);
- Existence in the device of TVG mode (construction of 16 points);
- DGS function, with automatic calculation of the equivalent reflector size;
- Archive of measurements, settings, transducers with the ability to transfer data to a PC;
- Any side display orientation options that allow user to work in any position of the device;
- The device operates on standard AA batteries, as well as on conventional batteries, which makes them easy to replace;
- The NOVOTEST UD2301 flaw detector can be powered by a universal mobile battery (power bank) via a mini USB connector;
- Ergonomic shockproof case with protective rubber protectors;
- Light weight and compact size.
