Novotest TB-MCV-1 硬度计(集成打印机)

Testing load: 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.9N), 1000gf (9.8N)
Microscope zoom: 100X (for observing): 400X (for measurement)
Output data: Integrated printer
Time measuring: 0 ~ 60 sec (can be setted with step 5 sec)
Instrument dimensions: 405*290*480 mm (L*W*H)
Net weight: 25 kg
Maximum height of test sample: 85 mm
Maximum depth of test sample: 95 mm
Power supply: 220V ± 5%, 50 ~ 60 Hz
Standard package: Bench hardness tester; Vickers indenter; Microscope; Conversion table; Standard hardness tests blocks; Package; Operating manual

Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD

Detail

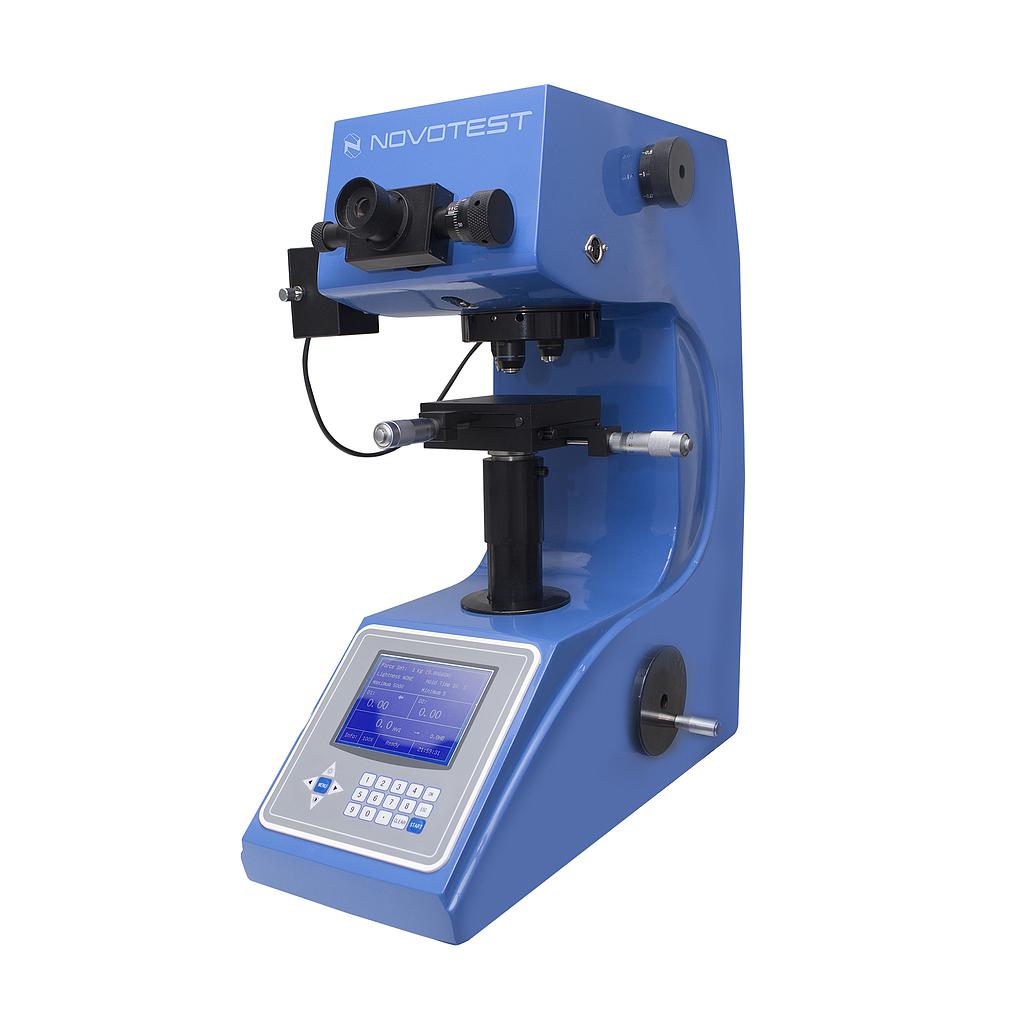

Micro Vickers Hardness Tester NOVOTEST TB-MCV-1

Bench Digital Micro Vickers Hardness Tester NOVOTEST TC-MCV-1 is used to measure the hardness value according to the micro Vickers scale. Hardness tester has a large contrast display, device handy and easy in setting and operation.

Micro Vickers hardness tester is used for hardness testing of surface hardened layers, the hardness of the coatings or measure hardness of thin and small tests products, when using other hardness testers are impossible.
