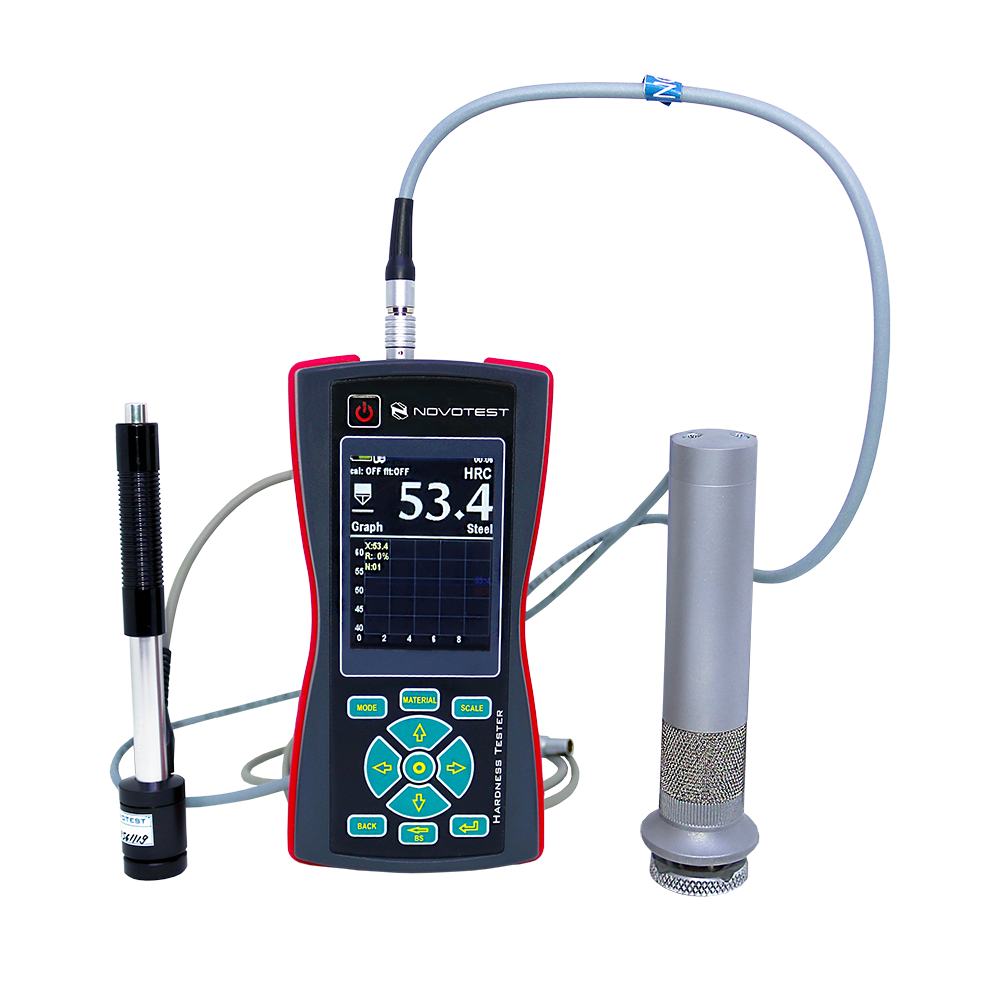

Novotest T-UD3 组合(uci 和Leeb) 硬度计

UCI probe types: 1kgf (10N) 2.2 lbf, 5kgf (50N) 11lbf, 10kgf (98N) 22lbf
Leeb probe types: D, DC, DL, C, D+15, E, G
Measuring range: HV:230~940; HRC:20~70; HB:90~650. Tensile strength, MPa 370~1740
Measuring accuracy: HV:±3%HV; HRC:±1.5%HRC; HB:±3%HB
Indenter: Diamond indenter (UCI), Hardened ball (Leeb)
Measuring direction: Any direction 360°
Data storage: Limited only by the memory card
Communication: Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scale: HRC, HB, HV, HRB, HS, HL, MPa
+ Ultrasonic (UCI) probe – pre-calibrated for steel.
+ Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper.
+  Additional custom materials for calibration.
Data display: Load applied/contact (UCI), Angle (Leeb), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff, Histogram, Signal and Smart Mode (Filter of incorrect measurements).
Indication: Color LCD display (320×240)
Operating environment : Temperature:-20°C~40°C; Humidity: 30%~80%R.H.
Power supply: DC 4,5V (3 pcs batteries AA)
Instrument dimensions: 160x75x30mm
Net weight : Approx. 0.3kg (without probe)
Battery life: Approx. 10 hours.
Standard package: Hardness tester, UCI probe, Leeb probe, 3 batteries, Charger, USB cable, Operating manual, Software for PC, Case

Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD




Standard Set of Vickers Test Blocks HV (3 pc. In set)
Leeb Hardness Test Block (1 pc. In set)
