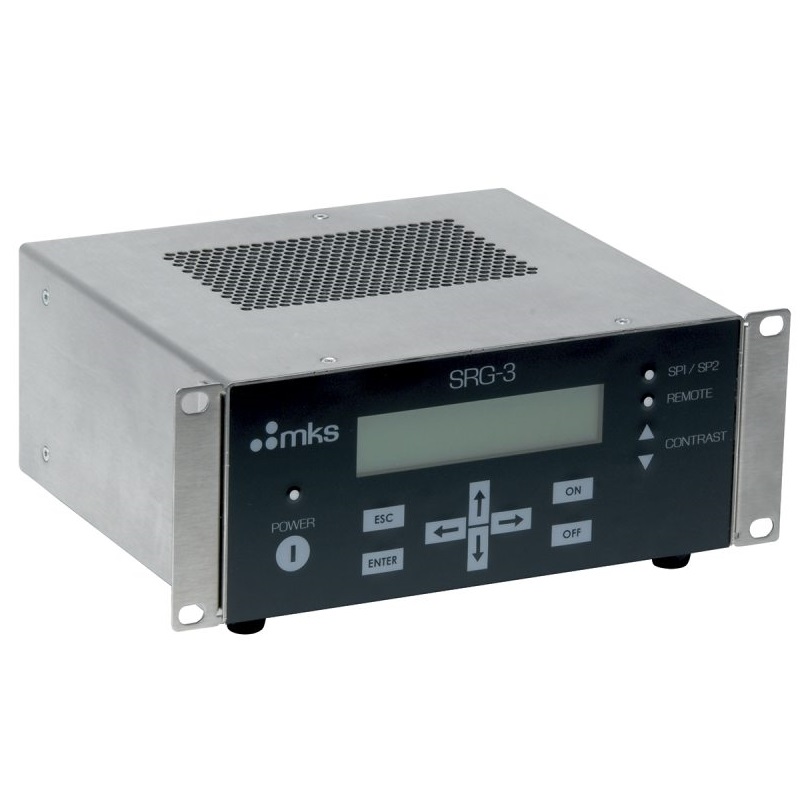

MKS SRG3-EL 转杯真空计传递标准 (5 x 10^-5 - 100 Pa)

Specifications

Measurement Range: 5 x 10^-5 to 100 Pa

Accuracy:

up to 1 Pa: 1% of measuring value + U

1 to 100 Pa: increasing up to 10% of measured value (typical)

Stability: Better than 1% per year

Display: 4½ digit LCD display

Display Units: Pa, mbar, or Torr

Analog Output: 0-10 VDC, into 2kΩ min. load, linear or logarithmic

Relays: 2 SPDT relays, adjustable, nominal switching capacity (resitive load): 1A 30VDC, 0.5A 25VAC

Digital Communication: RS-232, USB (USB 2.0 compatible)

Flange Type: 2¾ CF, made of stainless steel, bakeable up to 450°C (without measuring head)

Operating Temperature:

Electronics: 10-40°C

Measuring head: 10-50°C ball/flange assembly bakeable to 450°C

Enclosure: Half 19-inch rack mount or table top, 241 x 185 x 88 mm

Weight:

Electronics: 2.5 kg

Measuring head: 0.6 kg

Measuring flange: 0.5 kg

Power Requirements: 85 to 256 VAC, 47-63 Hz

Wetted Materials: Ball and Flange

Compliance: CE

For specific range please check the attachment below!
