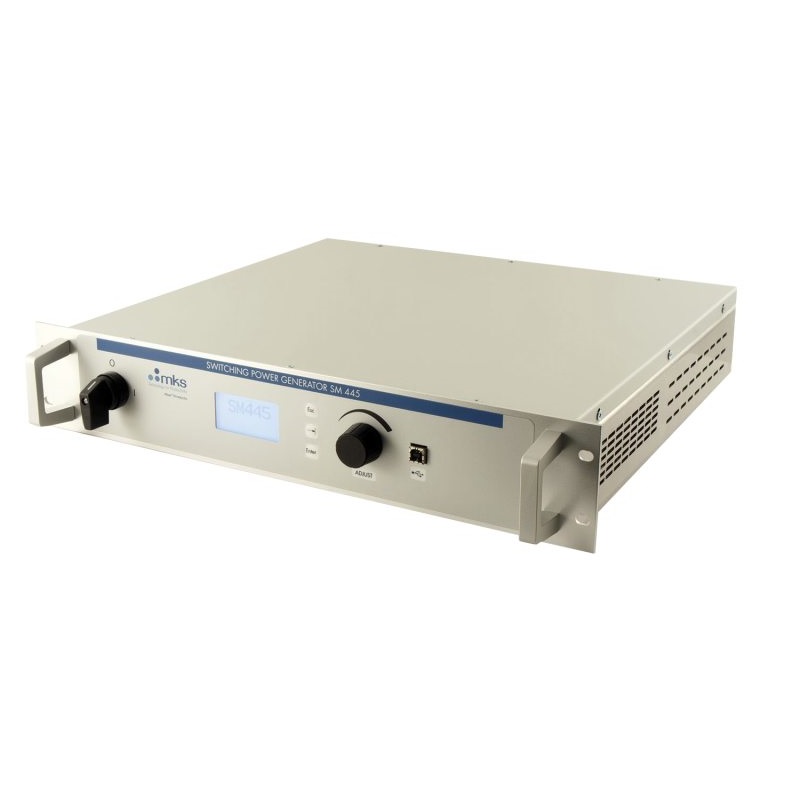

MKS SM-445 Alter® Air-cooled Switch Mode Microwave Power Supply (1.25 kW, 2.45 GHz)

Specifications

Type: SM 445 Switch Mode Microwave Power Supply

Power Output: 2000 W max

Input Voltage: 230 VAC +10%/-15%

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 475 mA max

Alarm Management: Opening alarm contact, emission of a 4 bit alarm code, the alarm is latched and requires a reset procedure

Dimensions:

Width, Rack 445 mm (17.52 inches)

Width, Front Panel 483 mm (19.02 inches)

Height, Rack 88.5 mm (2U, 3.48 inches)

Length, Rack 420 mm (16.54 inches)

Weight: 14kg (31 lbs)

Cooling: Forced air, approx 100 m3/h

Ambient Operating Temperature: 40° C (104° F) maximum

Compliance: CE

Preferred Microwave Magnetron Head: MKS, Alter TM012, TMA12, or TI012

For specific range please check the attachment below!
