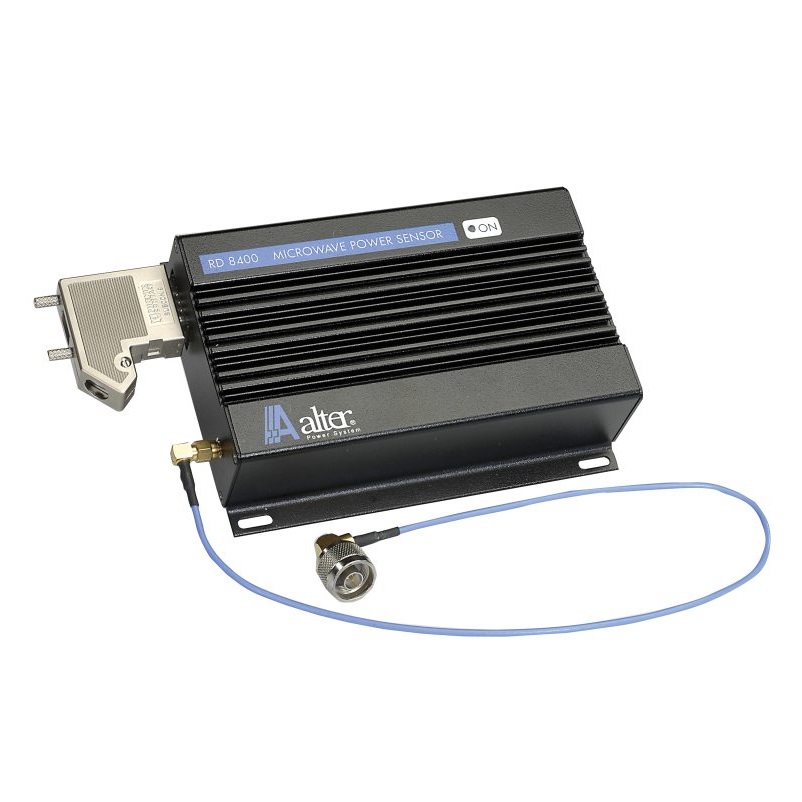

MKS RD8400A2 Alter® RD8400 Linear Power Sensor (Dual Channel, 2450 MHz)

Specifications

Type: RD8400 Linear Power Sensors

Operating Frequency: 2450 MHz, ±50MHz

Dimensions: 173 x 130 x 45 mm

Ambient Temperature: 5 to 40°C

Weight: 0.5 kg.

Coax Cable: 600mm standard, other lengths available.

Protection: IP20

Input Voltage: 12 - 24 VDC

Input Signal Range: -30 to +10 dBm

Error at Different Values of Frequency: ±1% max

Different Attenuation Value for Each Channel: Yes

Outputs: 1 or 2, not correlated

Output Signal: 0 - 10 VCC

For specific range please check the attachment below!
