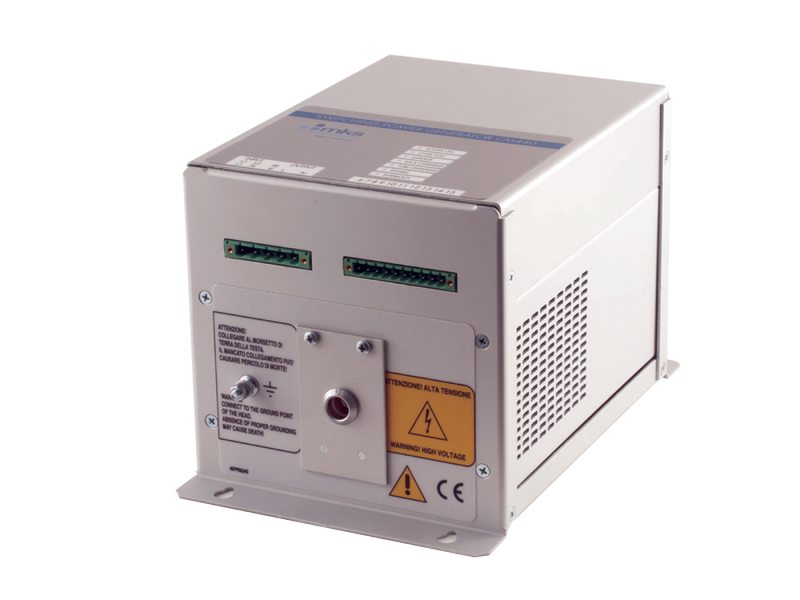

MKS CM440 Alter® 紧凑型风冷微波电源 (1.2 kW, 2.45 GHz Magnetron)

Specifications

Type: CM 440 Microwave Power Supplies

Power Output:

CM 440: 1700 W

Input Voltage: 230 VAC (nominal)

Range: 190 to 265 VAC

Line Frequency: 50/60 Hz

Efficiency: 90%

Output Current:

CM 440: 420 mA

Alarm Management: In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions:

Width: 180 mm (7.1 inches)

Height: 178 mm (7.1 inches) (total)

Length: 280 mm (11 inches) (total)

Weight: 5.6 kg (12.4 lbs.)

Cooling: Forced air, 80 m3/h

Ambient Operating Temperature: 40° C (104° F) maximum

Compliance: CE

Preferred Microwave Magnetron Head:

CM 440: TMx12 (Closed head, waveguide size WR340) TI012 (Integral Head with ISO launcher, waveguide size WR340) and other manufacturers electrically compatible heads.

For specific range please check the attachment below!
