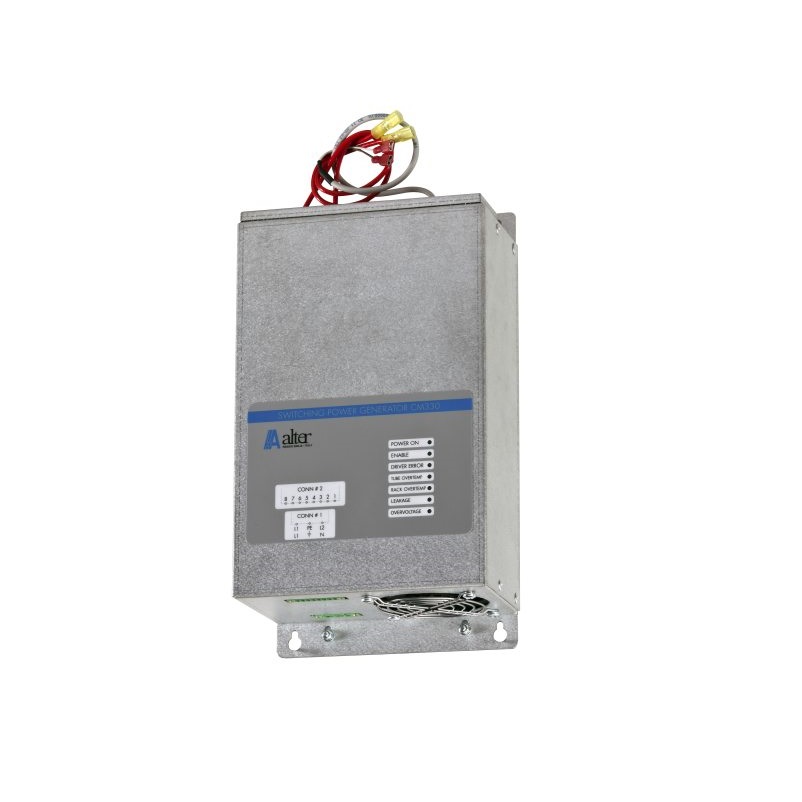

MKS CM330 Alter® 紧凑型风冷微波电源 (1 kW, 2.45 GHz Magnetron)

ecifications

Type: CM 330

Power Output: 1400 W

Input Voltage: 160 to 260 VAC

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 340 mA

Alarm Management: In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions: Width 180 mm (7.1 in.) Height, total (mm) 105 mm (4.1 in.) Length, total (mm) 320 mm (12.6 in.)

Weight: 3.8 kg / 8.4 lbs.

Cooling: Forced air, 80 m3/h

Ambient Operating Temperature: 40°C/104°F (max)

Compliance: CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-2, EN61000-6-4

Preferred Microwave Magnetron Head: TxA10 (Open frame head, waveguide size WR340), Other manufacturers electrically compatible heads

For specific range please check the attachment below!
