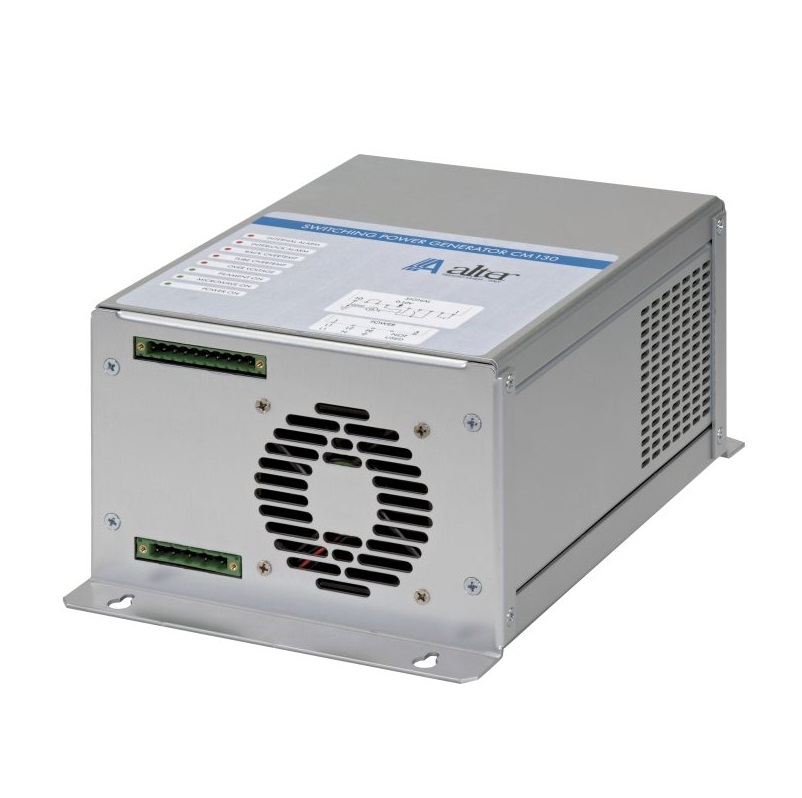

MKS CM130 Alter® Compact, Air-cooled Microwave Power Supply (300 W, 2.45 GHz Magnetron)

Specifications

Type: CM 130 Microwave Power Supply

Power Output: 540 Watts (maximum)

Input Voltage: 140 - 250 VAC

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 180 mA max (corresponding to approx. 300 Wrf) or 60 mA max (corresponding to 90 Wrf)

Alarm Management: In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions:

Width 190 mm (7.5 inches)

Height, total (mm) 127 mm (5.0 inches)

Length, total (mm) 284 mm (11.2 inches)

Weight: 3.7 kg / 8.1 lbs.

Cooling: Forced air, 80 m3/h

Ambient Operating Temperature: 40°C/104°F (max)

Compliance: CE, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head: TxA10 (Open frame head, waveguide size WR340) Other manufacturer's electrically compatible heads

For specific range please check the attachment below!
