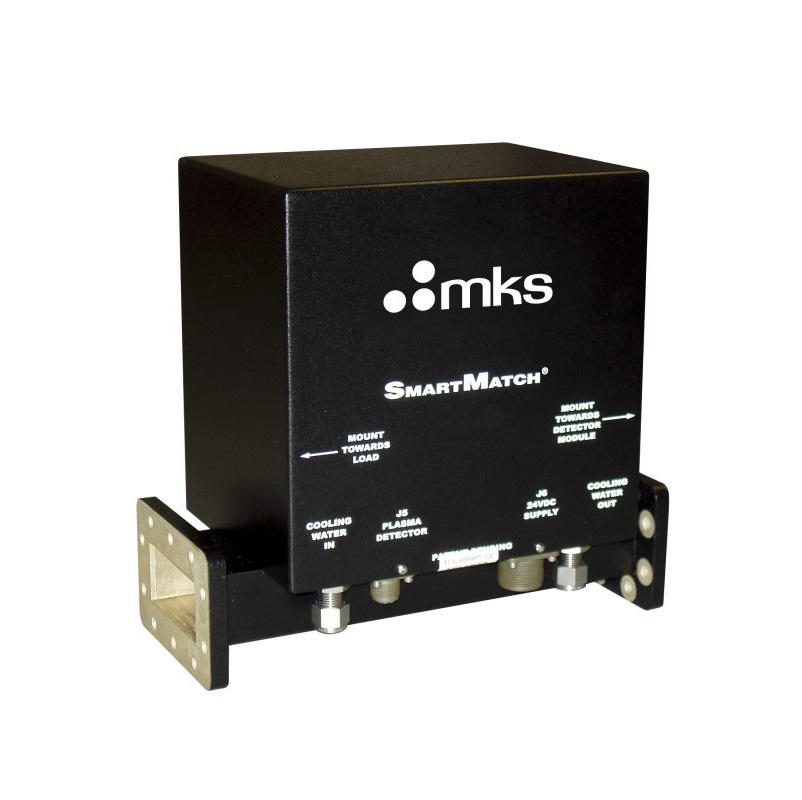

MKS AX3060 SmartMatch® Intelligent Microwave Matching Unit/Autotuner (For 3 & 6 kW systems)

Specifications

Type: SmartMatch® Microwave Matching Unit

Time to Match: <2 seconds

Matching System: Three stubs on 1-4 length waveguide intervals

Waveguide Size: WR284

Operating Frequency: 2.45 GHz ±15 MHz

Possible Matching Range: Match to maximum VSWR of 10

Matching Head Weight: 14 lb. (6.4 kg)

Mounting Position: Any

User Interface: RS485, Analog

Ambient Temperature; Up to 50°C maximum

Matching Head Cooling Requirement: Water at 0.25 gpm, 30°C maximum @ 30 psid

Matching Head Power Requirement: 24 VDC ±10%

Measurement Module Size; 3.43 x 4.87 x 8.0 inches (87 x 124 x 203 mm) (H x W x L)

Matching Head Size: (H x W x L) 10.25 x 6.18 x 11 in. (260 x 156 x 279 mm)

Measurement Module Weight: 2 lb. (0.9 kg)

For specific range please check the attachment below!
