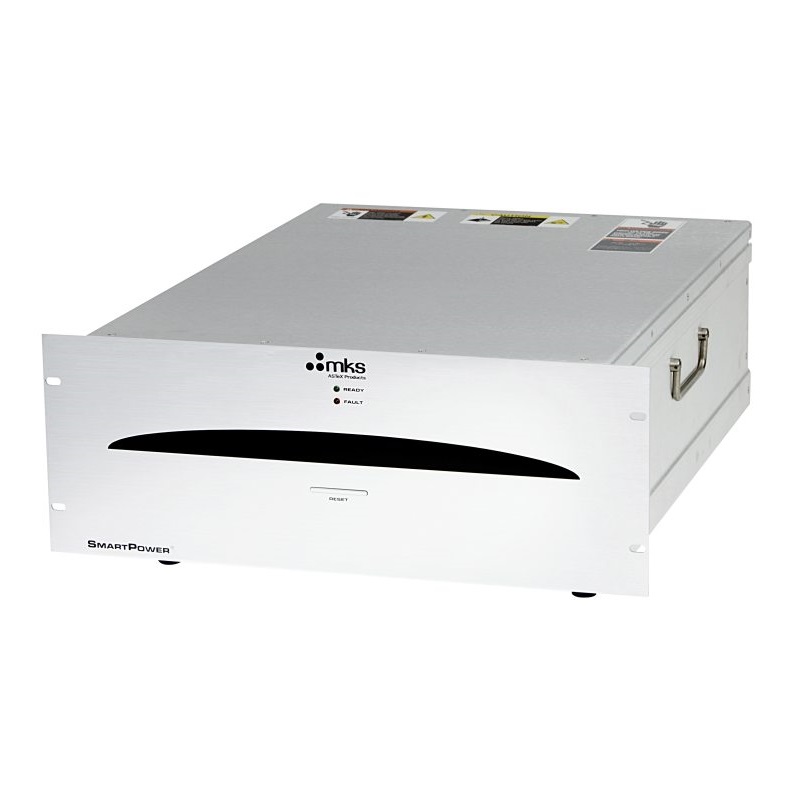

MKS AX2518 SmartPower® Intelligent Microwave Generators (1.8 kW, 2455 MHz)

Specifications

Type: Intelligent Microwave Generator

Frequency: 2440 - 2470 MHz

Ripple: ±1% of output power

Output Accuracy: ±1.5% (from 20-100% of max. power)

Ambient Temperature: Up to 40°C maximum

Generator to Head Distance: Up to 100 feet maximum

Microwave Connections: WR284F waveguide with CPR284F flanges

Power Requirements: 200/208 VAC ±10%, 3 phase, 50/60 Hz

Compliance: CE, ETL, Semi S2-93A, F47

Cooling: Water, 1.5 gpm, 30°C maximum @ 30 psid minimum, air

Power Supply Generator Dimensions: 7.0 inches H x 19 inches W x 23 inches L (178 x 483 x 584mm)

Power Head Magnetron Head Dimensions: 10 inches H x 7.62 inches W x 14.5 inches D (254 x 193.5 x 368.3mm)

Regulation: Better than 1% of output power (line and load)

Remote Control: Analog, RS485, DeviceNet™

For specific range please check the attachment below!
