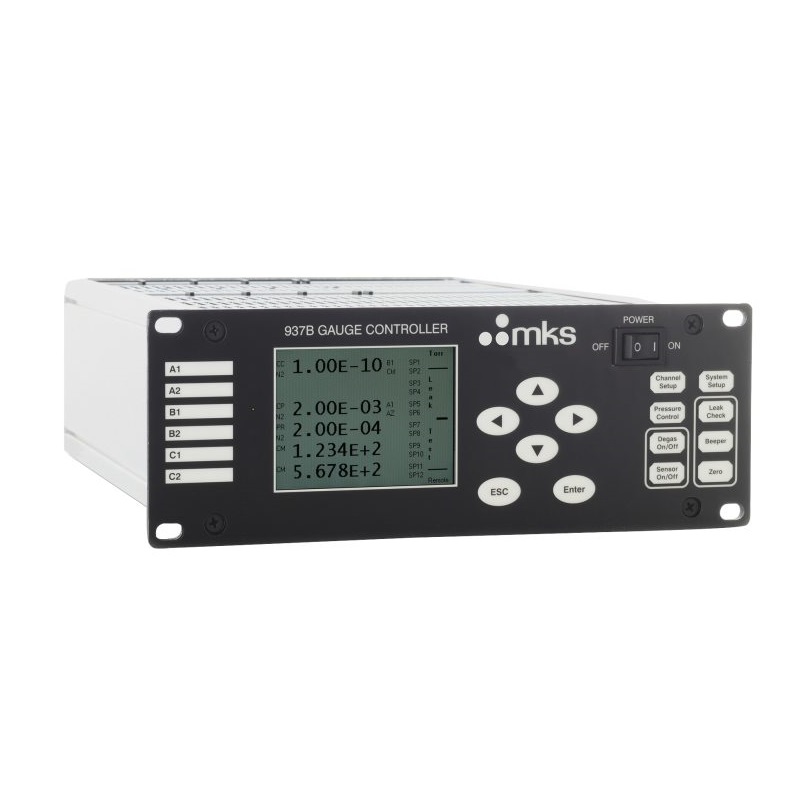

MKS 937B 数字组合真空计控制器 (1 x 10^-11 - 20.000 Torr)

Specifications

Measurement Range:

1 x 10^-11 to 20,000 Torr

1 x 10^-11 to 2.7 x 104 mbar

1 x 10^-9 to 2.7 x 106 Pascal

1 x 10^-8 to 1 x 107 microns

Display: 320x240 color QVGA TFT LCD with back lighting

Front Panel Controls: Power on-off switch, setup and operational commands can be accessed via the keypad

Power Requirements: 100 to 240 VAC, 50/60 Hz, 150 watts (maximum)

Analog Output: Buffered, log linear & linear output for each channel & channel combinations

Set Point Contact Rating: 2 amps @ 30 VAC

Set Point Configuration: Twelve pressure dependent SPDT relay set points

Operating Temperature: 5° to 40° C (41° to 104°F)

Storage Temperature: -10° to 55°C (14° to 131°F)

Leak Test: Relative logarithmic bar graph display and variable rate audio signal

Weight: 8 lbs (3.6 kg)

Compliance: CE

For specific range please check the attachment below!
