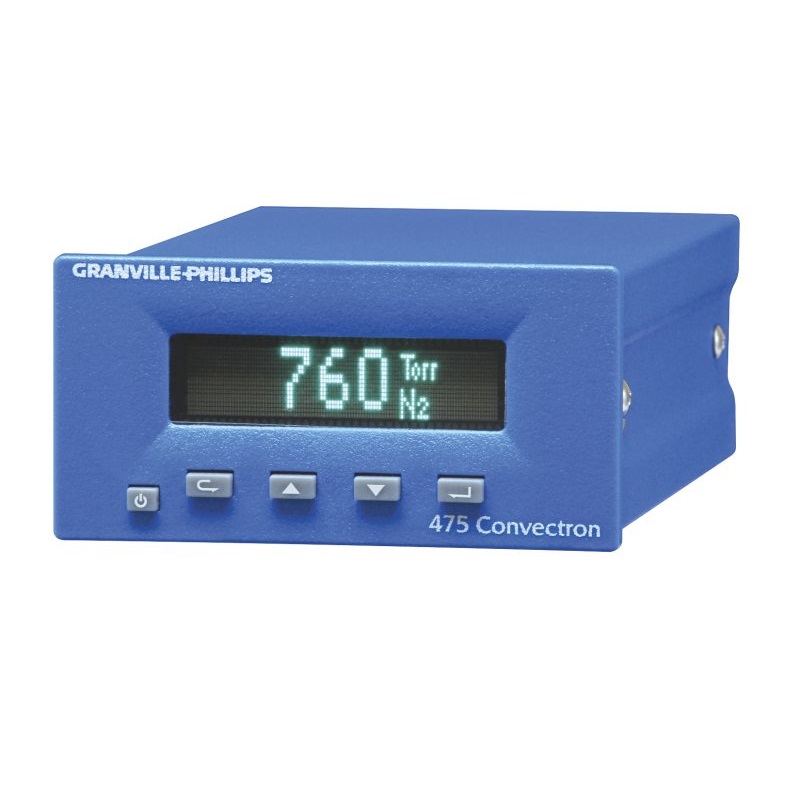

MKS 475 Convectron® Vacuum Gauge Controller (1x10^-4 Torr to Atmosphere)

Specifications

Type: Convectron® Gauge Controller

Measurement Range:

1x10^-4 Torr to Atmosphere

1x10^-4 mbar to Atmosphere

1x10^-2 Pa to Atmosphere

(N2)

Step Size at Minimum Pressure: 1 x 10^-4 Torr, 1 x 10^-4 mbar, 1 x 10^-2 Pa

Display: Vacuum Fluorescent

Display Update Rate: Every 0.5 sec

Units: mBar, Pascal, or Torr (optional)

Compatible with: Series 275 Convectron® Vacuum Gauges

Power Requirements: 12 to 24 VDC, 6 W continuous

Communication Protocol: RS232 or RS485 (optional)

Relays: 0 or 2 (optional)

Set Point Contact Rating: 5 A @ 250 VAC resistive load

Set Point Configuration: Two single pole, double-throw (optional)

Set Point Range:

1 x 10^-3 to 1000 Torr

1 x 10^-3 to 1333 mbar

1 x 10^-1 Pa to 133 kPa

Set Point Resolution: 2 significant digits

Operating Temperature: 0° to 40°C

Storage Temperature: -40°C to 70°C

Weight: 720 gm (25 oz)

Compliance: CE

For specific range please check the attachment below!
