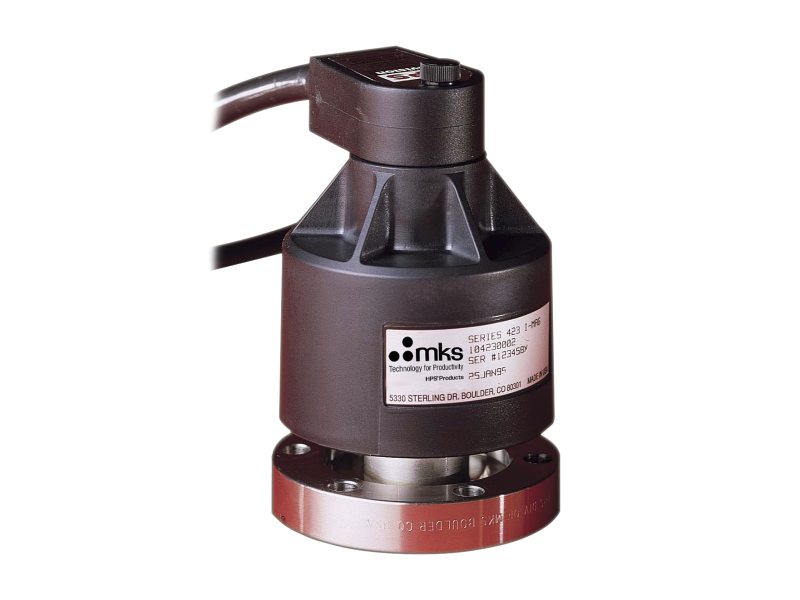

MKS 423 I-Mag® & 431 冷阴极真空压力传感器 (1 x 10^-11 - 1 x 10^-2 Torr)

Specifications

Sensor Type: I-Mag® Cold Cathode

Measurement Range:

1 x 10^-11 to 1 x 10^-2 Torr

1 x 10^-11 to 1 x 10^-2 mbar

1 x 10^-9 to 1.0 Pa

Connectors:

Tube Side: molded connector with a positive locking bolt

Controller Side: bayonet connector and threaded coaxial connector

Exposed Materials: Stainless steel, 6061 aluminum, Inconel®, glass and alumina ceramic

Reproducibility: 5% of reading at constant temperature

Bake Out Temperature: to 400°C (752°F) with CF flanges and magnet and cable removed

Operating Temperature: 0° to 70°C (32° to 158°F)

Calibration Gas: Air, Nitrogen

Installation Orientation: Any

Internal Volume: 15 cc

Weight: 2.0 lbs (0.8 kg) with CF flange

For specific range please check the attachment below!
