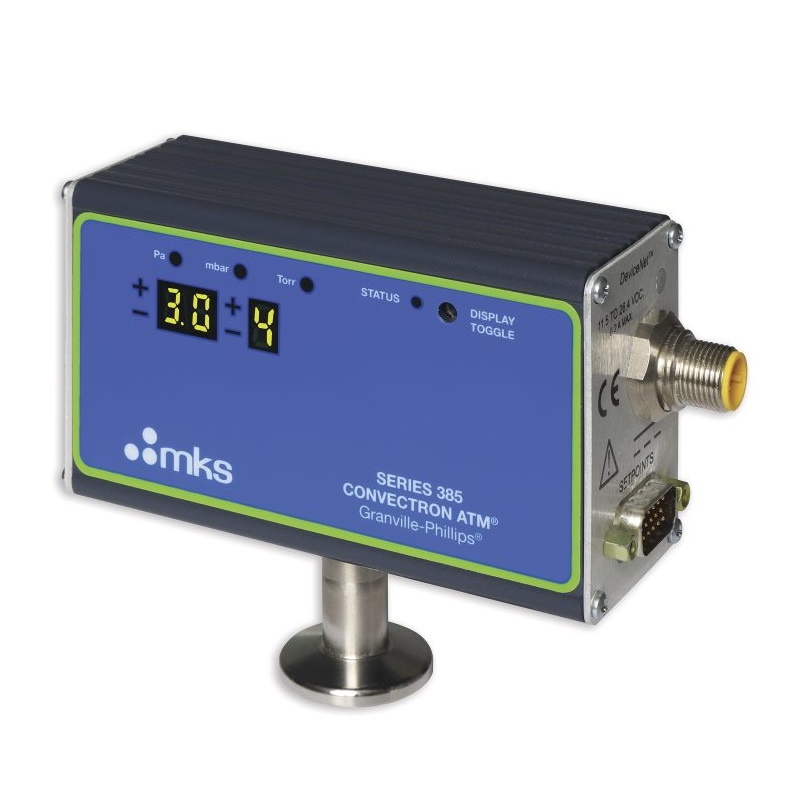

MKS 385 Convectron®ATM真空压力传感器 (1x10^-4 - 1000 Torr)

Specifications

Sensor Type: Convectron® ATM Gauge

Installation Orientation: Horizontal preferred

Measurement Range: 1x10^-4 to 1000 Torr (N2)

Set Point Range:

Absolute: 1x10^-4 to 1000 Torr

Differential: 750 Torr below atmosphere to 125 Torr above atmosphere

Filament: Gold-plated tungsten

Connector: Male, 15-pin, high-density D-sub

Operating Temperature: 0° to 40°C (32° to 104°F)

Storage Temperature: -40°C to 85°C (-40° to 185°F)

Relays: Four single-pole, single-throw, (SPST) normally open

Relay Contact Rating: 1A at 30 VDC resistive, or AC non-inductive

Power Requirements: 11 to 26 VDC, 3.6 Watts maximum

Exposed Materials: 304 stainless steel, borosilicate glass, Kovar, alumina, NiFe alloy, polyimide, pyrex, ceramic, silicon, epoxy, RTV, Viton, and nickel

Case Material: Aluminum extrusion with powder coat

Internal Volume: 35 cc

Weight: 340 gm (12 oz) with 1/8 NPT Fitting

Units: Torr

Display: 3-digit green LED, automatic ranging (optional)

Compliance: CE

For specific range please check the attachment below!
