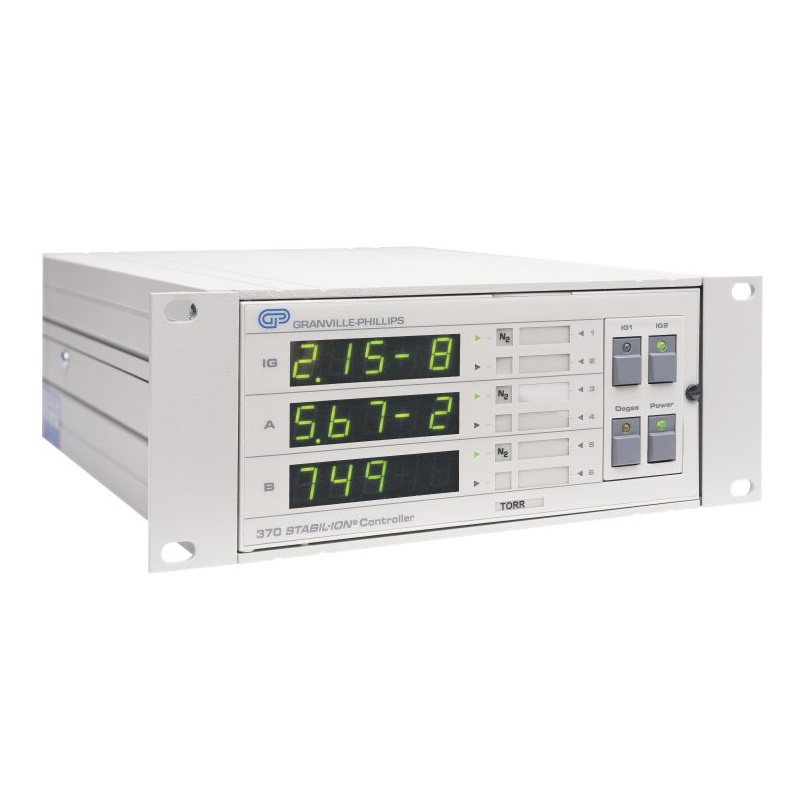

MKS 370 Stabil-Ion® Vacuum Gauge Controllers (2 x 10^-11 - 999 Torr)

Specifications

Measurement Range:

UHV Stabil-Ion Gauge: 2 x 10^-11 to 999 Torr; 3 x 10^-11 to 1.33 x 103 mbar; 3 x 10^-9 to 1.33 x 105 Pa

Extended Range Stabil-Ion Gauge: 2 x 10^-10 to 999 Torr;3 x 10^-10 to 1.3 x 103 mbar;3 x 10^-8 to 1.3 x 105 Pa

Display: 3 digits, plus exponent, green LED

Units: Torr, mbar, or Pa

Power Requirements: 90 to 130 Vac, or 180 to 250 VAC, 50/60 Hz, 220 W max

Communication Protocol: RS-232, RS-485

Analog Output:

Stabil-Ion: 1 volt per decade, logarithmic, 0-10 VDC

Convectron option: 1 volt per decade, logarithmic, 0-7 VDC

Set Point Contact Rating: 5 A at 250 Vac, 5 A at 30 Vac, resistive load

Set Point Configuration: Single pole, double throw (SPDT)

Accuracy: 1 x 10^-8 Torr to 1 x 10^-4 Torr: ±4% of reading (N2)

Repeatability: 1 x 10^-8 Torr to 1 x 10^-4 Torr: ±3% of reading

Emission Current: 0.1 mA and 4.0 mA

Degas: Electron bombardment, 40 W, 1 to 30 minutes (adjustable)

Operating Temperature: 0°C to 40°C

Storage Temperature: -40°C to 70°C

Case Materials: Aluminum extrusion, steel, plastic

For specific range please check the attachment below!
