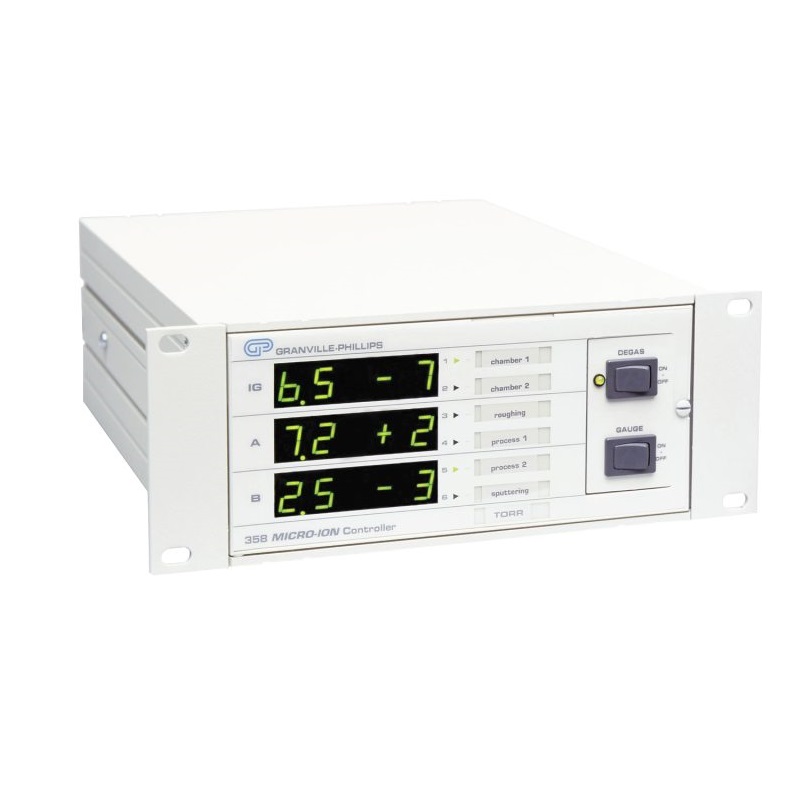

MKS 358 Micro-Ion® Vacuum Gauge Controller (5x10^-10 - 5x10^-2 Torr)

Specifications

Measurement Range:

Torr: 5x10^-10 to 5x10^-2 (to 1000 Torr with Convectron option)

mbar: 6x10^-10 to 7x10^-2 (to 1300 mbar with Convectron option)

Pa: 6x10^-8 to 7 (to 130 kPa with Convectron option)

(for air and N2)

Display: 2 digits plus exponent, green LED

Display Update Rate: Every 0.5 sec

Power Requirements: 100 to 240 Vac, 50 to 60 Hz, 50 W max

Communication Protocol: RS-232 or RS-485/422

Analog Output: Micro-Ion: 1 Volt/decade, logarithmic, 0 to 10 V

Set Point Contact Rating: 5 A at 30 Vdc, 5 A at 120 Vac, 4 A at 240 Vac, resistive load

Set Point Configuration: Single-pole, double-throw (SPDT) relays

Emission Current: 0.02, 1 or 4 mA, switch selectable

Degas: Electron bombardment, 4 W with 2-minute timer

Operating Temperature: 0° to 40°C

Storage Temperature: -40° to 70°C

Case Materials: Aluminum extrusion

Filament Selections: Filament 1, filament 2 or both, switch selectable

Overpressure Protection: Ion gauge turns off at factory set upper pressure limit

Remote Input Signals: Gauge on/off and degas on/off, selected by momentary continuity to ground

Remote Output Signals: Gauge status indicated by a single-pole, double-throw relay rated at 1 A @ 30 VDC resistive, AC non-inductive

Connector: 9-pin subminiature-D male

Weight: 1.8 kg (4 lbs)

For specific range please check the attachment below!
