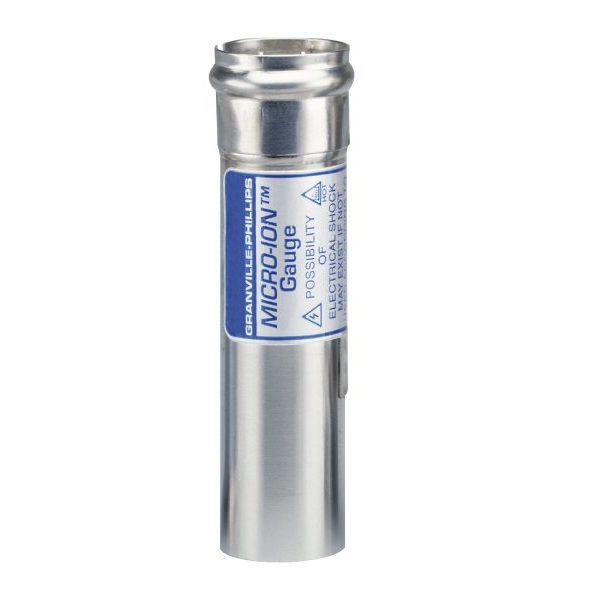

MKS 355 Micro-Ion®热阴极Bayard-Alpert真空传感器 (5x10^-10 - 5x10^-2 Torr)

Specifications

Sensor Type: Micro-Ion Ionization Gauge

Measurement Range:

5x10^-10 to 5x10^-2 Torr

6x10^-10 to 7x10^-2 mbar

6x10^-8 to 7 Pa

Filament: Yttria-coated iridium or tungsten

Exposed Materials: 304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®

Bake Out Temperature: 200°C maximum, non-operating, cable disconnected

Internal Volume: 10.8 cc to port screen

Weight: 113 g (4 oz) with NW16KF fitting

Sensitivity for N2: 20/Torr, 15/mbar, 0.15/Pa

X-ray Limit: <3x10^-10 Torr, <4 x10^-10 mbar, <4x10^-8 Pa

For specific range please check the attachment below!
