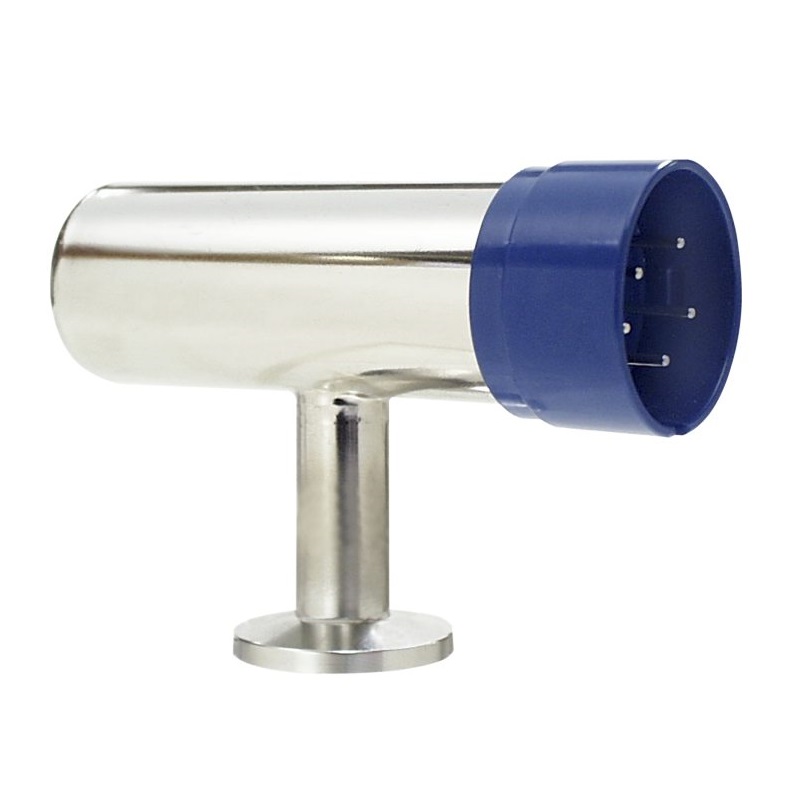

MKS 275 Convectron® 对流增强型Pirani真空压力传感器 (1x10^-4 Torr)

Specifications

Sensor Type: Convectron® Pirani Vacuum Gauge

Measurement Range: 1x10^-4 Torr

Exposed Materials:

Sensor: Gold-plated tungsten

Other Materials: 304 stainless steel, borosilicate glass, Kovar®, Alumina, NiFe alloy, polyimide

Bake Out Temperature: 150°C

Operating Temperature: 4° to 50°C

Installation Orientation: Horizontal preferred

Internal Volume: 35 cc

Weight: 85 grams (3 ounces) for 1/8 NPT flange

For specific range please check the attachment below!

Literature
