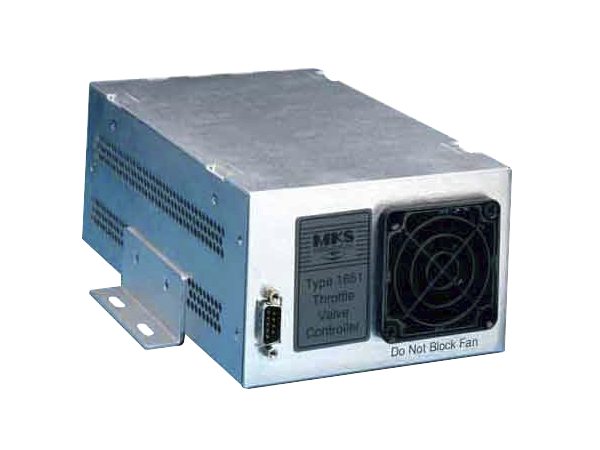

MKS 1651C2S 无显示数字压力控制器

Specifications

Type: 1651C Displayless Digital Pressure Controller

For Use With: 653 and 253 Exhaust Throttle Valves

Power Input: ±15 VDC ±5%

For 653 Valve: 1 Amp + transducer current minimum

For 253 Valve: 0.5 Amp + transducer current minimum

Not to exceed 7 Amps

Power Output: Available to external transducers: ±15 Volts @ 3 Amps max. (90 Watts) from an external power supply with a capacity of ±15 Volts @ 5 Amps (150 Watts)

Pressure Control Signal: 0-5 VDC, 0-10 VDC, 0-1 VDC, user selectable

Output Signal: 0-5 or 0-10 VDC for 0-100% valve position and 0-10 VDC for 0-100% Full Scale pressure

Set Points:

Programmable: 5 total, programmable in any combination for pressure or position (adjustable via RS-232; selectable via TTL or RS-232)

External Analog: 1; pressure or position, 0-5 or 0-10 VDC

Relay Output: 2, process limits: 24 Volts VDC @ 1 Amp resistive

Repeatability: ±0.1% of Full Scale

Operating Temperature: 15 - 50°C (60 - 122°F)

Display: none

User Interface: Analog, TTL (16 inputs, 6 outputs) and RS-232

Connectors:

Power Connector: 9-pin Type "D" male Valve: 9-pin Type "D" female

I/O: 37-pin Type "D" female Transducer: 15-pin Type "D" female RS-232: 9-pin Type "D" male

Dimensions: 3 1/2 inches H x 6.7 inches W x 9.15 inches D

Controls: Soft Start, Self-tuning Unit, PID Control, Remote Zero, Remote Control Override (Open, Close, hold), Position Control Capability

For specific range please check the attachment below!
