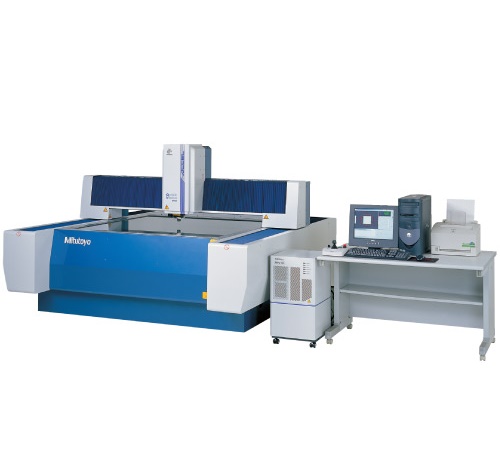

MITUTOYO QV ACCEL 1517PRO CNC 影像测量系统 (1500mm 1750mm 100mm)

Range X-Axis: 0-60in 0-1500mm

Range Y-Axis: 0-17in 0-1750mm

Range Z-Axis: 0-4in 0-100mm

Resolution: 0.1µm

High-sensitivity CCD camera: BW

Accuracy (20°C 1.0°C): E1xy-(2.2+3L/1000)µm

E1z-(4.0+5L1000)µm

E2xy-(3.5+4L/1000)µm

Max.Drive Speed: X/Y 300/150mm/s

Illumination: Surface-LED,white; Contour-LED,White; PRL-LED,white (4 divisions)

Magnification change system: Programmable power (1x ,2x ,6x) turret

Stage glass size: 67.5x77.5in 1714x1968mm

Dimension: 96x113x61in 2440x2868x1554mm

Mass: 9900lbs 4500kg
