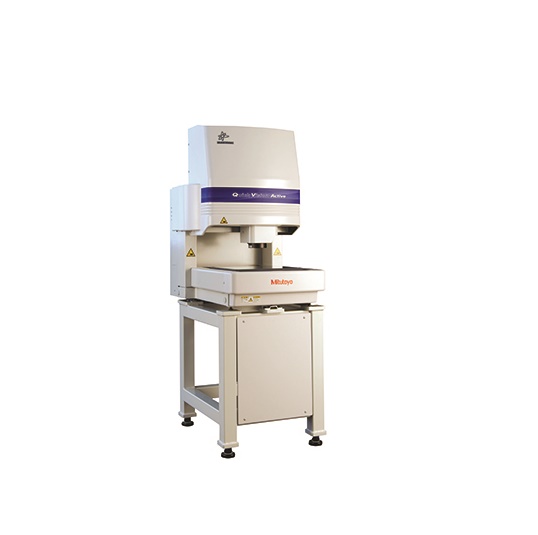

MITUTOYO QV-L202Z1L-D CNC Vision Measuring System (250mm 200mm 150mm)

Measuring Range X-Axis: 0-9.84in 0-250mm

Measuring Range Y-Axis: 0-7.87in 0-200mm

Measuring Range Z-Axis: 0-5.91in 0-150mm

Resolution 0.1 µm

Measuring accuracy:

E1(X,Y) = (2+3L/1000)

E1(Z) = (3+5L/1000)

E2(X,Y) = (2.5+4L/1000)

Max stage loading: 22lbs 10kg

Mass: 265lbs 120kg

Illuminations: (White LED)

Contour / Coaxial / 4-quadrant ring light

Magnification change system: Zoom optical system with 8 positions

(Standard 1.5X magnification lens)

Sensor type: High-resolution CMOS color camera

Optional objective lenrs: 1X and 2X magnification

Factory option: Series 364 (TP) Touch-Probe option
