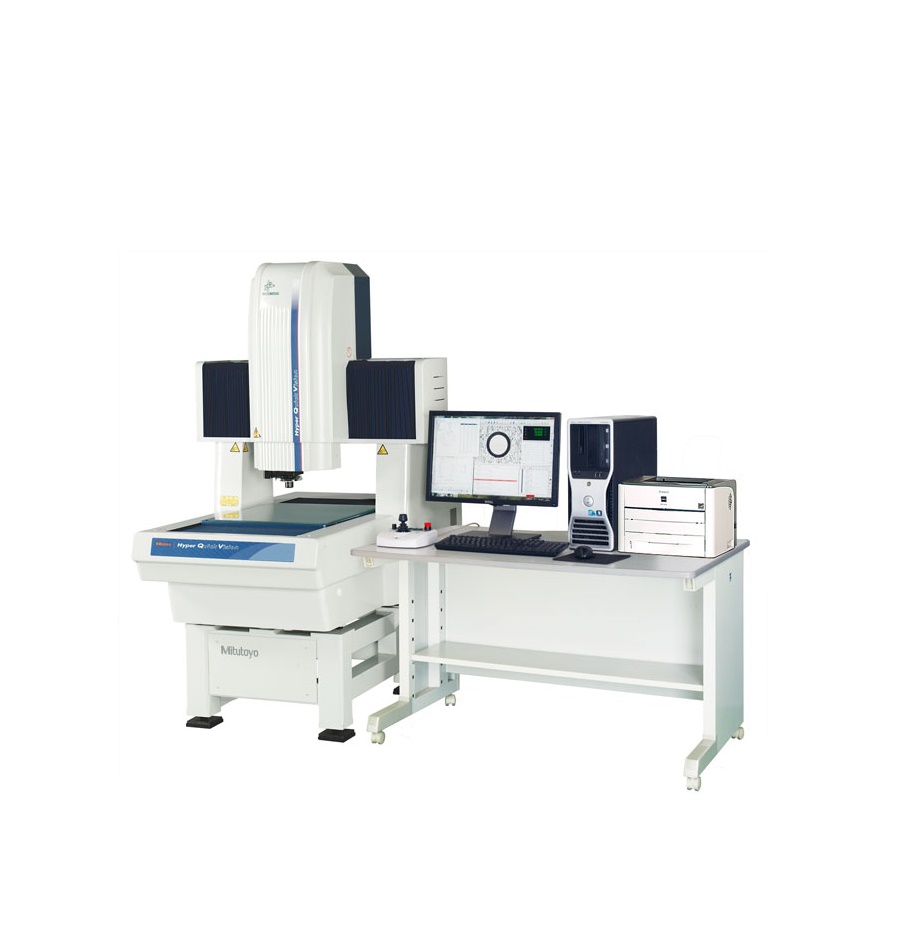

MITUTOYO QV-HYPER606PRO LAF 影像量测系统 (600 × 650 × 250mm)

Measuring range (X × Y × Z): 23.62"x25.59"x9.84"(600 × 650 × 250mm)

Variable magnification unit: Programmable Power Turret 1X, 2X, 6X

Resolution / scale unit: 0.1μm / reflective-type linear encoder

CCD camera: B & W

Illumination unit:

Vertical reflected stage light: White LED

Coaxial: White LED

Programmable Ring light: White LED

Measuring accuracy:

E1 X / Y axes: (0.8+2L / 1000) μm

E1 Z axis: (1.5+2L / 1000) μm

E2 X-Y plane (1.4+3L / 1000) μm

LAF repeatability: σ : 0.4μm

Maximum stage loading: 110lbs.(50kg)

Mass of main unit (including mounting stand): 3,197lbs.(1450kg)

Optional accessories:

Laser Auto Focus

Rotary Index
