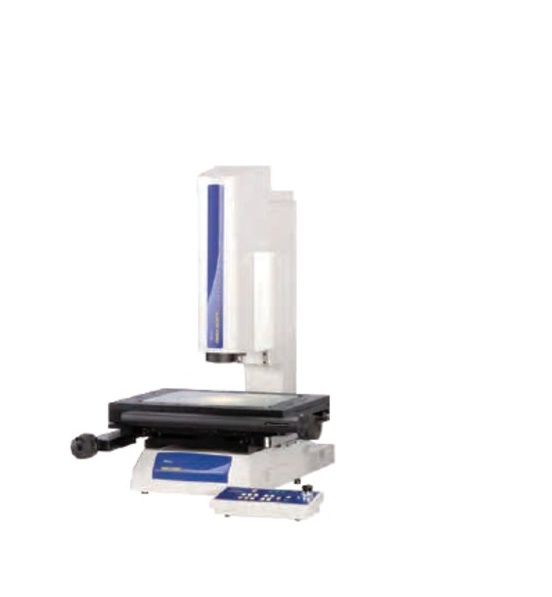

MITUTOYO QS-L2010/ZB 手动视觉测量系统 (200×100×150mm)

Drive method: X axis/Y axis/Z axis : Manual

Optical Magnification: Zoom: 0.75X-5.25X (in 8steps)

Measuring range (X×Y×Z): 8"× 4"× 6" (200×100×150mm)

Resolution/Length standard: 0.1μm/Linear encoder

Image detecting unit: 1/2" Color CMOS camera

Indication accuracy

X, Y (2.5+20L/1000)µm

Z (5.0+40L/1000)µm

Operating temperature range: 20±1°C

Stage glass size: 10"× 6" (250×150mm)

Maximum stage loading: 22 lbs (10kg)


Stage light: 12V/50W Halogen

Co-axial light: 12V50W Halogen

Ring fiber light: 12V/100W Halogen

Main Unit:

Dimensions (W×D×H)mm: 25"× 30"× 28" (624×769×722mm)

Mass: 160 lbs (72kg)

Power Unit:

Dimensions (W×D×H)mm:12"× 13"× 4" (310×330×102.5mm)

Mass: 11 lbs (5kg)

Power consumption: 160W at max

Accessory option:

• Rotary table: Rotary table with fine-feed knob (A) (176-305)

• Swivel center support (172-197)

• Holder with clamp (176-107)

• V-block with clamp (172-378)
