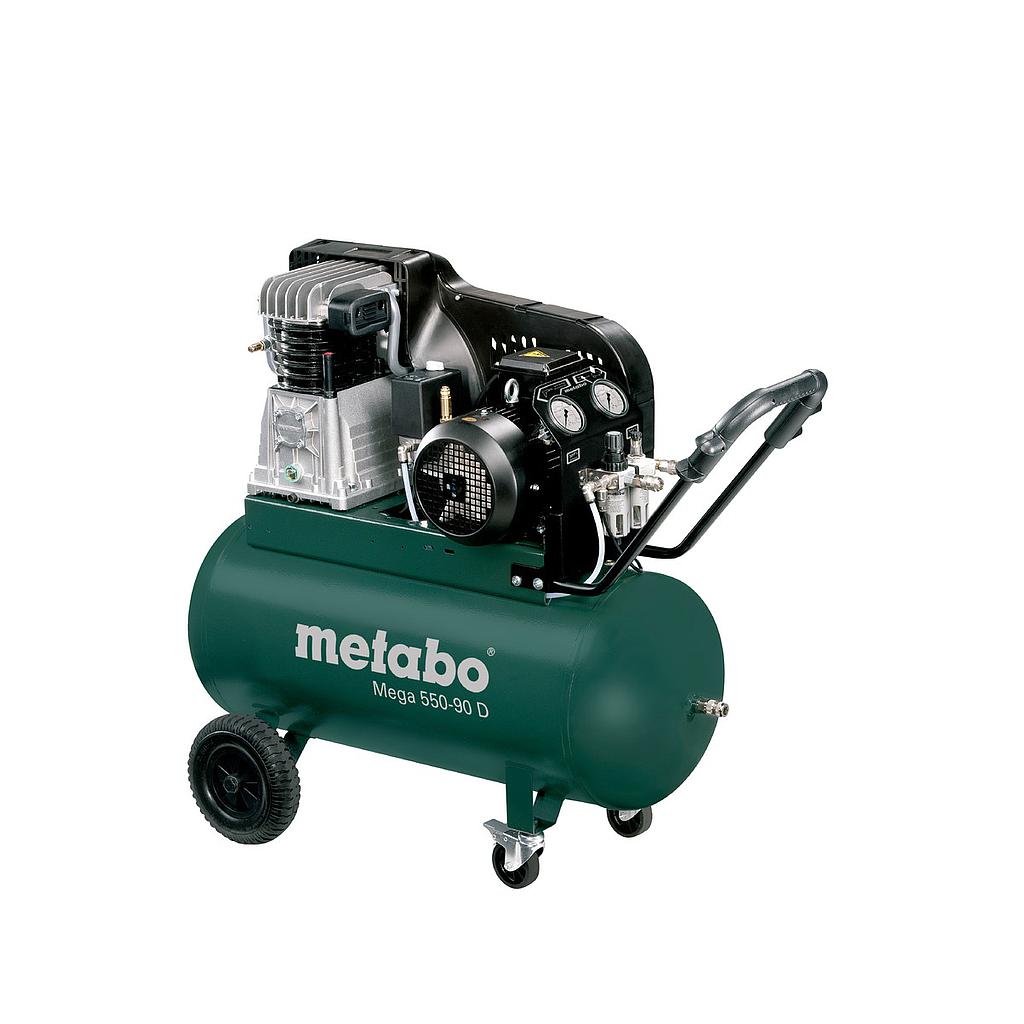

METABO MEGA 550-90 D Mega 压力机 (380-415 V / 50 Hz)

  • 制造商:METABO
    Model: MEGA 550-90 D
    P/N: 601540000
    来源: Italy
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Suction rate: 510 l/min / 135 gal/h

Filling capacity: 395 l/min / 14 cfm

Effective delivery volume (at 80% max. pressure): 360 l/min / 12.7 cfm

Maximum pressure: 11 bar / 160 psi

Rated input power: 3 kW / 4 HP

Maximum speed1400 rpm

Tank capacity: 90 l / 23.8 gal

Sound pressure level (LpA): 87 dB(A)

Sound power level (LwA): 96 dB(A)

Dimensions: 1126 x 490 x 917 mm / 3.7 x 1.6 x 3 ft

Weight: 103 kg / 227 lbs

Cable length: 1.5 m / 5 ft

Noise emission

Sound pressure level: 87 dB(A)

Sound power level (LwA): 96 dB(A)


Delivery

3 x Universal couplings

Accessories

COMPRESSED AIR

Accessories for compressors, Compressed air preparation, Accessories for compressed air tools

OTHER ACCESSORIES

Occupational safety


Details

Datasheet


Features

More powerful and robust V-belt compressor for demanding use

Belt drive for low speeds and a particularly quiet operation

Two-stage compression for particularly high performance and long service life

For three-phase current

Working pressure can be regulated according to application and air quality improved thanks to the filter pressure reducer with manometer and oil-mist lubricator

Convenient pressure switch for good cold starting, complete with relief valve

Additional manometer for displaying the tank pressure

Overload protection: protects the motor from overheating

Oil-lubricated 2-cylinder piston compressors for high air supply volume

Instrument panel with easy to read manometer for tank- and working pressure

Large, rubberised wheels for comfortable transport

Steering castors with locking brake for high manoeuvrability

Cable winding mechanism

Ergonomic and long pull handle with integrated cable drum

10 year tank warranty against rust
