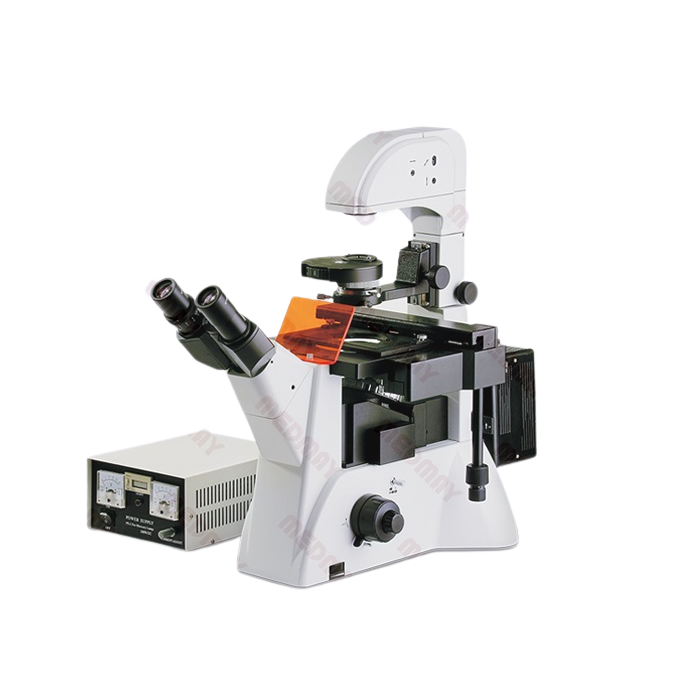

Medmay MMIC072 荧光显微镜 (10X, 20X, 40X)

Objective: Infinity plan achromatic objectives: 10X, 20X, 40X; Phase contrast objectives: 10X, 20X, 40X

Eyepieces: Wide field WF10X (Φ22mm); Centering telescope

Viewing head: Inclination angle is 45˚ and interpupillary distance is 53mm~75mm

Nosepiece: Quintuple (backward ball bearing inner locating)

Stage: Fixed stage overall size is 227mm×208mm; Glass rotundity stage overall size is Ф118mm;

           Mechanical moving device, moving range is 77mm (longitudinal)×114mm (transverse)

Focusing: Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm

Condenser: Turnplate phase contrast condenser, working distance is 55mm

Illumination: Epi- fluorescent illumination system: Power supply unit, 110V or 230V can be selected. Mercury lamp is 100W/DC. Multi-fluorescent filters can be selected; Transmitted illumination system: Frosted glass and blue, green filter, 6V 30W halogen, brightness enable control
