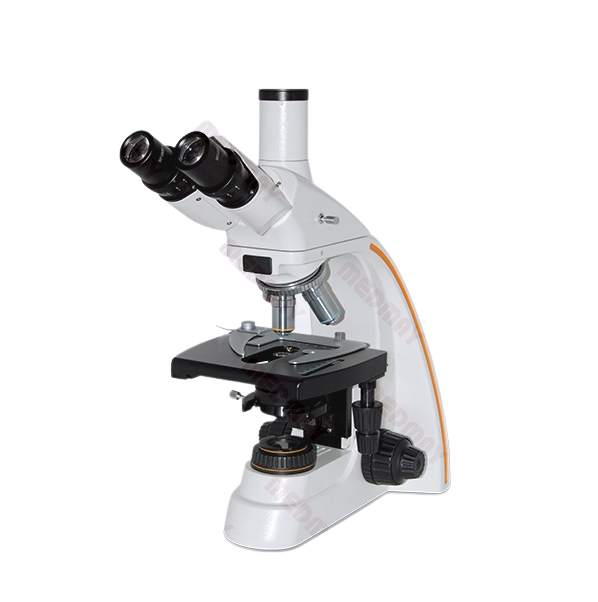

Medmay MMIC049 生物学显微镜 (4X~100X; 消色差物镜)

Objective: Achromatic objectives: 4X, 10X, 40X (S), 100X (S, Oil)

Eyepieces: Wide field WF10X (Φ22mm)

Viewing head: HBG Binocular (inclination of 30˚); HTG Trinocular (Inclination of 30˚); Eye point height adjustable

Nosepiece: Quadruple (backward ball bearing inner locating)

Stage: Double layer mechanical stage and overall size: 193mm×155mm, moving range: 75mm×50mm

Focusing: Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm

Condenser: Abbe condenser N.A. 1.25 rack & pinion adjustable

Illumination: Blue filter, frosted filter, 6V 20W halogen lamp
