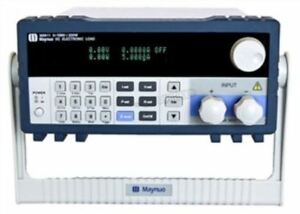

Maynuo M9711 直流电子负载（0-30A / 0-150V / 150W）
制造商: MAYNUO Model: M9711 - 联系
Power: 150W
Current: 0-30A
Voltage: 0-150V
Size: 214 * 108 * 365mm
Weight: 3.5kg
Details
| Model | M9711 | ||
| Input Rating | Power | 150W | |
| Current | 0-30A | ||
| Voltage | 0-150V | ||
| CC Mode | Range | 0-3A | 0-30A |
| Resolution | 0.1mA | 1mA | |
| Accuracy | 0.03%+0.05%FS | 0.03%+0.05%FS | |
| CV Mode | Range | 0.1-19.999V | 0.1-150V |
| Resolution | 1mV | 10mV | |
| Accuracy | 0.03%+0.02%FS | 0.03%+0.02%FS | |
| CR Mode (Voltage and current input value >=10% full measurement) | Range | 0.03-10K Oh | 0.03-5K Oh |
| Resolution | 16 bit | 16 bit | |
| Accuracy | 0.1%+0.1%FS | 0.1%+0.1%FS | |
| CW Mode (Voltage and current input value >=10% full measurement) | Range | 0-150W | 0-150W |
| Resolution | 1mW | 10mW | |
| Accuracy | 0.1%+0.1%FS | 0.1%+0.1%FS | |
| Voltage Measurement | Voltage | 0-19.999V | 0-150V |
| Resolution | 1mV | 10mV | |
| Accuracy | 0.015%+0.03%FS | 0.015%+0.03%FS | |
| Current Measurement | Current | 0-3A | 0-30A |
| Resolution | 0.01mA | 0.1mA | |
| Accuracy | 0.03%+0.05%FS | 0.03%+0.08%FS | |
| Power Measurement(Voltage and current input value >=10% full measurement) | Power | 100W | 150W |
| Resolution | 1mW | 10mW | |
| Accuracy | 0.1%+0.1%FS | 0.1%+0.1%FS | |
| Battery Test |
Battery Input: 0.1-150V; Max. Mesurement:Capacity=999AH; Resolution=0.1mA; Test Range=1S-16H |
||
| Dynamic Test |
Transition List:0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS |
||
| Current soft-startup Time |
1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500mS;1000mS Accuracy:+15% offset+10%FS |
||
| Short Circuit | Current(CC) | =3.3A | =33A |
| Voltage(CV) | 0V | ||
| Resistance(CR) | =55mOh | ||
| Temperature | Operating | 0~40oC | |
| Nonoperating | -10oC~70oC | ||
| Dimension | W*H*D(mm) | 214*108*365 | |
| Weight | Kg | 3.5 | |
