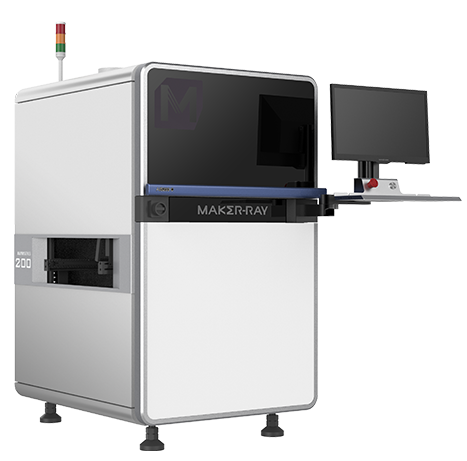

Maker-Ray AIS203-29C* 在线 PCBA AOI 自动光学检测系统,适用 DIP 因素

PCB Size:50x50mm~510x460mm

Camera:29MP color

Light source:W + strip light source on four sides

FOV:510*460mm

Resolution:77um

Communication method:SMEMA

Intel i5 CPU

Display card: Nvida Independent GPU Accelerator Card

Storage:8GDDR,256G SSD+2T Mechanical HD

Power Supply:AC 220,300W

Dimension:

(Rail height:750mm)L*H*W: 880*1540*1140mm

(Rail height:900mm)L*H*W: 880*1690*1140mm

Net Weight:400KG

Details

It captures board image in real time by high precision color industrial camera.

Adopt Convolutional Neural Network (CNN) algorithm to process images.

Judge defects of components intelligently.

Defect Type:Wrong part, missing part, reverse polarity and other defects of DIP element


Defect Type
Core Advantage
Application
Minimalist Programming
Strong Inspection Capability
Fast Inspection Speed
Detailed Data Report
Centralized Management and Remote Service
Optional Product
