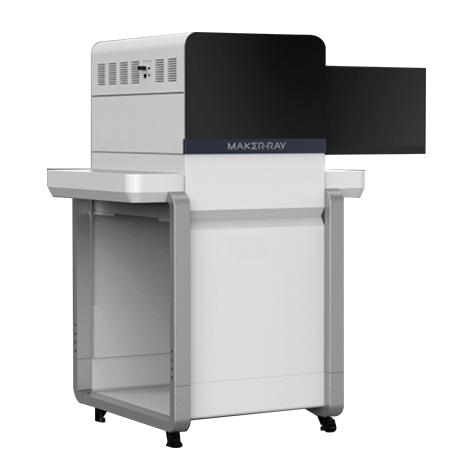

Maker-Ray AIS203-29C DIP组件的在线PCBA AOI

PCB Size:50x50mm ~ 520x380mm

Camera: 29MP color

Light source :W + strip light source on four sides

FOV : 520 * 380mm

Resolution: 80um

Communication method: SMEMA

CPU Intel i7

Display Card: Nvida . Standalone GPU Acceleration Card

Memory : 8GDDR, 256G SSD + 2T Mechanical HD

Power supply : AC 220,200W

Dimensions (L * H * W) : 715 * (1315-1700) * (760-1210) mm

Net weight:100KG

Details

It captures board image in real time by high precision color industrial camera.

Adopt Convolutional Neural Network (CNN) algorithm to process images.

Judge defects of components intelligently.

Defect Type:Wrong part, missing part, reverse polarity and other defects of DIP element


Defect Type
Core Advantage
Application
Minimalist Programming
Strong Inspection Capability
Fast Inspection Speed
Detailed Data Report
Centralized Management and Remote Service
Optional Product
