Litepoint IQxstream-5G 5G FR1 Sub-6 GHz 移动信号测试系统


Details

Datasheet


Brochure

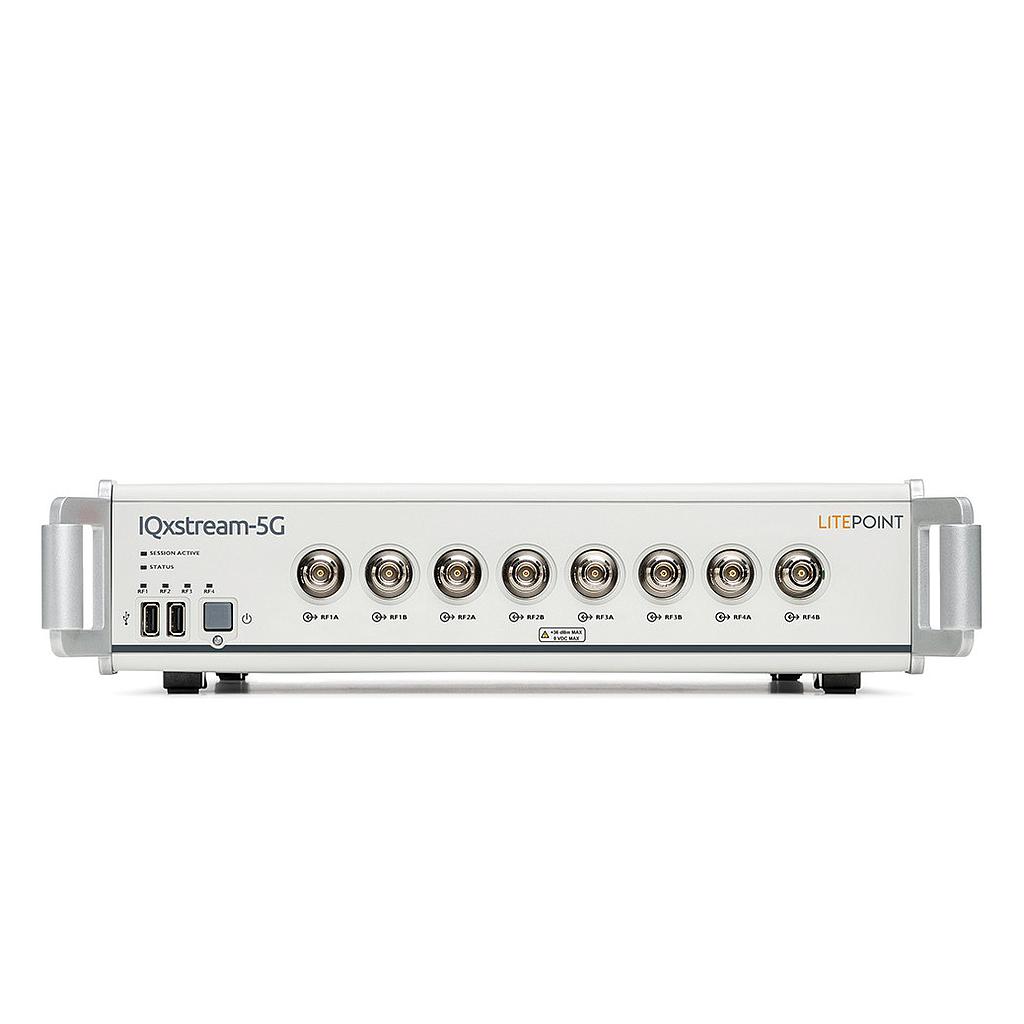

IQxstream-5G™ is a multi-DUT manufacturing test solution with 200 MHz of contiguous bandwidth for physical layer testing across 5G NR Sub-6 GHz frequency range.

This high performance, compact platform also supports 2G/3G/4G cellular technologies and is ideal for user equipment (UE) applications such as smartphones, tablets and laptops.


Comprehensive Platform that Supports 5G FR1, Legacy Cellular and Connectivity Technologies

Support for all 5G FR1 Sub-6 GHz frequencies within 400 MHz – 6000 MHz

Support for C-V2X, LTE TDD/ FDD, LAA and other legacy 2G/3G technologies

Software upgradeable to support wireless technologies, including Wi-Fi (802.11a/ac/ah/ax/b/g/n/p/af), Bluetooth, Zigbee, NB-IoT and the popular navigational technologies

Superior Performance Designed for Chipset Development and Testing

Outstanding EVM performance of up to -48 dB at 100 MHz CC

Support for 200 MHz of contiguous bandwidth facilitating 5G NR carrier aggregation (CA) signal analysis

Broad VSG dynamic range with a maximum output Power of up to +5dBm

Flexible Setup with Higher Production Throughput

Fast deployment with minimal setup time

Direct connect with eight bi-directional factory calibrated ports

Dual-module architecture enables efficient multi-DUT parallel testing

Multi-port expandability when connected with an IQ3101 switch module

Turnkey Solution for Multi-DUT Manufacturing Test

Intuitive GUI simplifies test parameter modification and provides a visual analysis of test results

Calibration and verification software IQfact5G enables extensive and faster data logging and analysis

IQfact5G coupled with asynchronous parallel test maximizes multi-DUT efficiencies

5G NR Sub-6 GHz Technology Options

• 5G Sub-6 GHz

• LTE TDD / FDD

• TD-SDCMA

• W-CDMA HSPA / HSPA+

• GSM / EDGE

• CDMA / CDMA2000

• LTE IoT UE categories Cat 1, Cat 0 (Cat M1) and Cat NB1 (NB-IoT)

• LTE Small Cell (Femtocell, Picocell)

• Wi-Fi, 802.11ax

• Wi-Fi, 802.11ac

• Wi-Fi, 802.11a/b/g/j/n/p

• Wi-Fi, 802.11af

• Wi-Fi, 802.11ah

• Bluetooth, Classic (1.x, 2.x, 3.0), Low Energy (4.0, 4.1, 4.2) and Bluetooth 5.x

• DECT

• LPWAN, Sigfox / LoRa

• Zigbee, Z-Wave and Wi-SUN

• Navigation: GPS, GLONASS, Compass and Galileo


When & Where to Use the IQgig-RF for Testing?

R&D lab, DVT, Production test environments

From chipsets to modules, final product characterization or manufacturing lifecycle stages

For mobile or IoT devices
