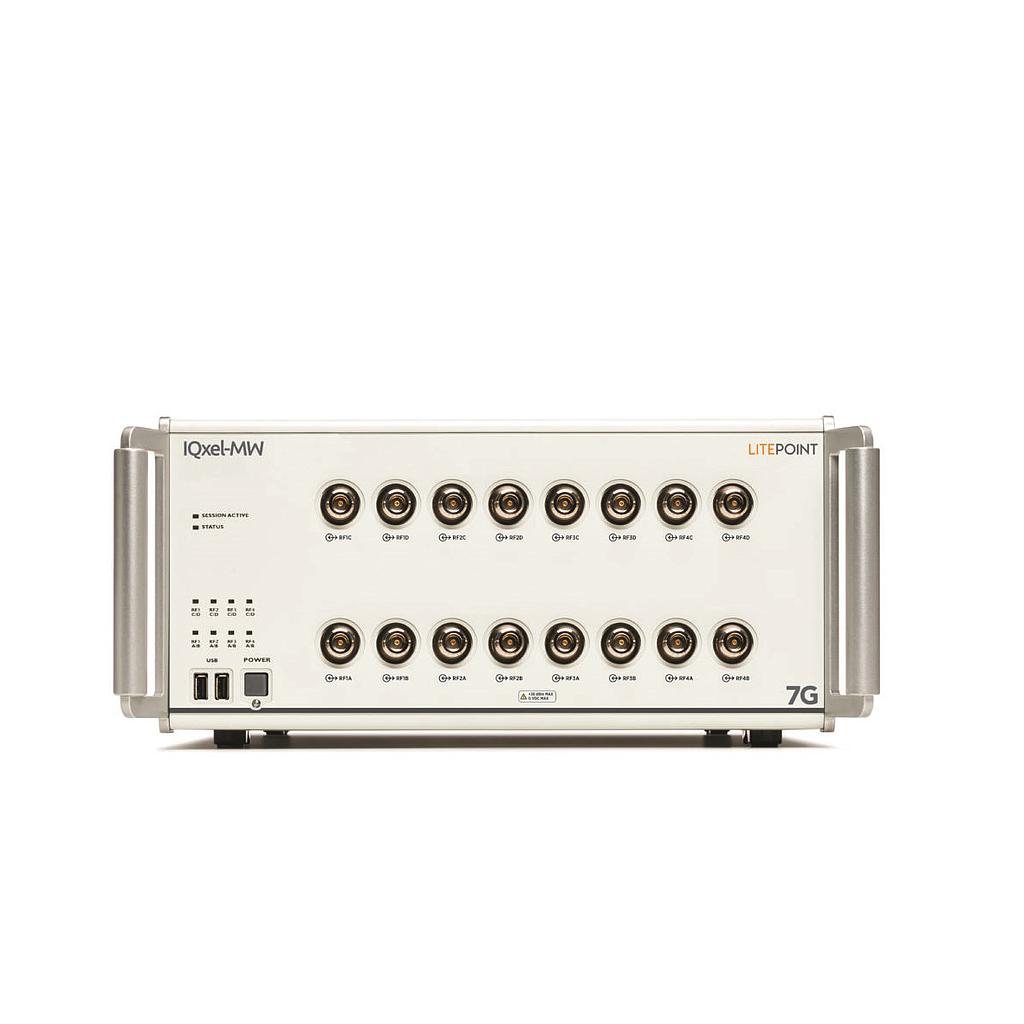

Litepoint IQxel-MW 7G Wi-Fi 6 and Wi-Fi 6E up to 7.3 GHz 测试系统


Details

Datasheet


Brochure


First Fully Integrated Tester for Wi-Fi 6 and Wi-Fi 6E in the 6 GHz Band

Platform solution for 802.11 a/b/g/n/ 802.11ac and 802.11ax testing in the 2.4 and 5 GHz and 6 GHz bands and the most popular wireless connectivity standards (Bluetooth, Bluetooth 5, Bluetooth 5.1, Bluetooth 5.2, Zigbee, Z-Wave) as well as LPWAN technologies (Sigfox, LoRa).


As the FCC and other international regulatory agencies are working towards opening up the 6 GHz band (5.925-7.125 GHz) for unlicensed use, LitePoint’s new IQxel-MW 7G family of testers is designed to meet the demands of connectivity and cellular technologies testing up to 7.3 GHz.


Designed for Wi-Fi 6 and Wi-Fi 6E Testing in the 2.4 GHz, 5 GHz and 6 GHz Bands

Frequency range from 400 MHz to 7300 MHz

Addresses the requirements of the IEEE 802.11ax (Wi-Fi 6) and 802.11ac (Wi-Fi 5) specifications and tests all IEEE 802.11 legacy specifications

Native support for per-port 160 MHz, 80+80 MHz and future 160+160 MHz signal combinations

Exceptional residual EVM performance for 1024 QAM

Single-user OFDMA, Trigger based Test multi-user OFDMA, Uplink and Downlink testing with easy-to-edit RU allocations

Wi-Fi 6 Carrier Frequency Offset (CFO), power and timing control verification

Connectivity Technologies (802.11 a/b/g/n, ac and ax Testing, Bluetooth 1 to 5.2)

Tests all Bluetooth device standards (1.x, 2.x, 3.0, 4.x, 5) and the newly released BT 5.1 and BT 5.2

Connectivity standards DECT (ETSI EN 300 176-1), 802.15.4-based standards including ZigBee, Z-Wave and WiSUN

Test support for LPWAN technologies LoRa and Sigfox

Cellular Technologies (2G, 3G, 4G LTE, 5G NR, 5G NR-U)

TDD and FDD non-signaling test modes supported

Legacy 2G, 3G and mainstream 4G LTE, LAA, and 5G 3GPP NR technologies

Future-proof test solution for 5G NR-U testing and for testing Wi-Fi and cellular coexistence

Turnkey Solutions for Leading WLAN and Bluetooth Chipset Manufacturers

Start testing immediately with IQfact+™ software solutions for leading WLAN and Bluetooth chipsets

Growing library of hundreds of chipset-specific test solutions save setup time and development costs

Fully backward compatible with existing LitePoint connectivity test systems

Wi-Fi 6 OFDMA Test Solution for 802.11ax Compliance

OFDMA Pre-correction test solution for Wi-Fi 6 certification

Complete solution with IQsniffer (Wi-Fi traffic sniffer) option

Integrated implementation capable of capturing and analyzing complex interactions between Wi-Fi 6 OFDMA participants

Simultaneous analysis at the MAC and RF PHY layers for all users and streams

Simplifies troubleshooting and debugging of Wi-Fi 6 MU-MIMO and OFDMA features

Allows engineers to achieve faster time to market with Wi-Fi 6 compliant devices

WLAN, Bluetooth, IoT, LPWAN and 2G, 3G, 4G, 5G Cellular Technology Options

Wi-Fi, 802.11ax (Wi-Fi 6)

Wi-Fi, 802.11ac Wave 1 and Wave 2 (Wi-Fi 5)

Wi-Fi, 802.11a/b/g/j/n/p

Wi-Fi, 802.11af/ah

Bluetooth, Classic/EDR (1-4.x), Low Energy (4.0, 4.1, 4.2) and Bluetooth (5.0, 5.1, 5.2)

Scalable to 8×8 true MIMO

Zigbee, Z-Wave and Wi-SUN

DECT

LPWAN: Sigfox, LoRa

Navigation: GPS, GLONASS, Compass and Galileo

GSM / EDGE

CDMA / CDMA2000

TD-SDCMA

W-CDMA HSPA / HSPA+

LTE

3GPP 5G NR
